| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |
Description

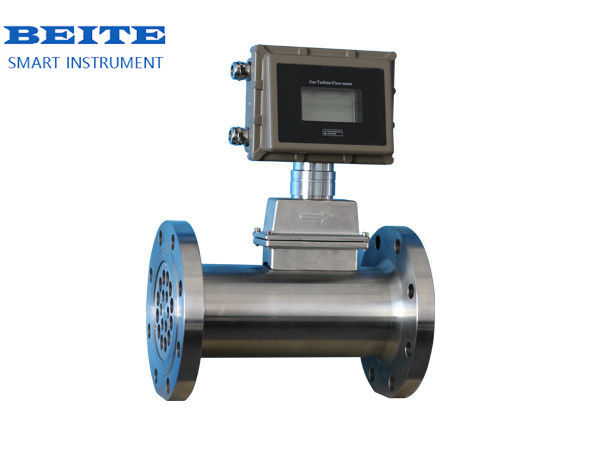

The gas turbine flowmeter absorbs the leading technology of foreign flow meters and is optimized and designed. It is independently developed by integrating gas mechanics, fluid mechanics, electromagnetics and other theories. It is a new type of temperature, pressure, flow sensor and intelligent flow totalizer. A generation of high-precision and high-reliability gas precision metering instruments with good low-pressure and high-pressure metering performance, multiple signal output modes and low sensitivity to fluid disturbance. It is widely used in the measurement of natural gas, coal-to-gas, liquefied gas and other gases. Measurement.
principle
When the airflow enters the flowmeter, it first passes through the leading fluid of the independent movement and accelerates. Under the action of the fluid, since the turbine blades are at a certain angle with the flow direction of the fluid, the turbine generates a rotational torque, which starts after the turbine overcomes the resistance torque and frictional torque. Turn. When the torques reach balance, the rotational speed is stable, and the turbine rotation speed has a linear relationship with the flow rate. The magnet on the rotating sending disk periodically changes the sensor reluctance, thereby sensing a pulse at both ends of the sensor that is proportional to the fluid volume flow rate. Pulse signal. After the signal is amplified and shaped by the preamplifier, the pressure and temperature signals detected by the pressure and temperature sensor are simultaneously sent to the flow totalizer for processing, and the standard volume flow rate and standard volume total amount are directly displayed.
Specification
| Implementation standards | Measurement of gas flow in closed pipelines—Gas turbine flowmeter (GB/T8940-2003) |
| Instrument diameter (mm) and connection method | 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300 adopt flange connection 25, 40 and 50 can be connected with threads |
| Accuracy level | ±1.5%R (±1%R requires special production)* |
| Turndown | 1:10;1:20;1:30 |
| Instrument material | Body: 304 stainless steel or cast aluminum Impeller: anti-corrosion ABS or high-quality aluminum alloy Converter: Cast Aluminum |
| Conditions of Use | Medium temperature: -20℃~+80℃ Ambient temperature: -30℃~+60℃ Relative humidity: 5% ~ 90% Atmospheric pressure: 86 Kpa~106Kpa |
| Working power supply | A. External power supply: +24VDC±15%, ripple ≤±5%, suitable for 4-20mA output, pulse output, RS485, etc. B. Internal power supply: 1 set of 3.0V10AH lithium battery. The battery voltage can work normally when the battery voltage is 2.0V~3.0V. An undervoltage indication occurs when the voltage is lower than 2.0. |
| Machine power consumption | A. External power supply: <1W B. Internal power supply: average power consumption ≤1W, can be used continuously for more than three years. |
| Signal output function | Pulse signal ①, 4-20mA current signal ②, control signal ③ |
| Communication output function | R5485 communication④ |
| Real-time recording function⑤ | Start and stop records, daily records, fixed time interval records |
| Signal line interface | Internal thread M20×1.5 or other |
| Explosion-proof level | ExdIIBT6 or ExiaIICT4 |
| Protection level | IP65 |
Features
1. GOOD PRECISION
The flow meter is a thrust type with carbide bearings, which has good accuracy and improved wear resistance.
2. COMPACT STRUCTURE
Compact and lightweight structure, easy to install and maintain
3. SIMPLE STRUCTURE
Features three: simple structure, solid structure and easy disassembly and assembly
4. HIGH ACCURACY
High accuracy, generally up to ±0.5%R, ±1.0%R, good repeatability
5. REPEATABILITY
Up to 0.05% - 0.2%5
6. PRESSURE RATING
High pressure level, small pressure loss, strong flow capacity and strong vibration resistance
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
