| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |
Description

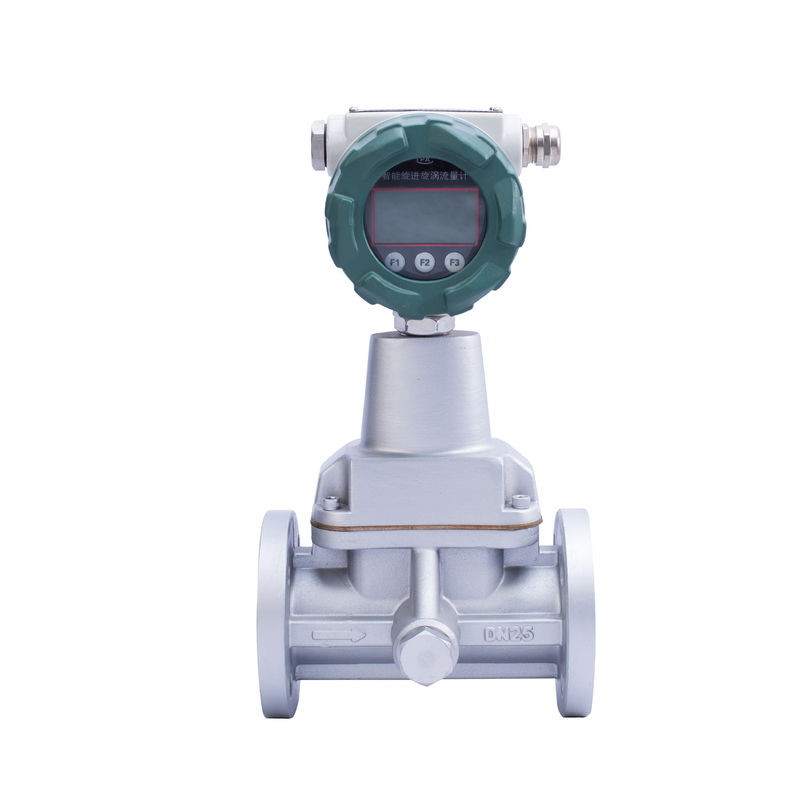

LUXZ series intelligent precession vortex flowmeter is a new type of gas flow meter developed by our company. This flowmeter integrates flow, temperature, and pressure detection functions, and can automatically compensate for temperature, pressure, and compression factors. It is an ideal instrument for gas measurement in petroleum, chemical, electric power, metallurgy, and other industries.
The intelligent flow meter integrates a flow probe, microprocessor, pressure, and temperature sensors into one. It adopts a built-in combination to make the structure more compact. It can directly measure the flow rate, pressure and temperature of the fluid, and automatically track compensation and compression factor correction in real time;
The LUXZ series intelligent precession vortex flowmeter can be widely used in petroleum, chemical industry, electric power, metallurgy, urban gas supply and other industries to measure various gas flows. It is currently a commonly used product in oil fields and urban natural gas transmission and distribution measurement and trade measurement.
Specification
No mechanical moving parts, not easy to corrode, stable and reliable, long life, no special maintenance required for long-term operation;
Using 16-bit computer chip, it has high integration, small size, good performance and strong overall function;
The intelligent flow meter integrates a flow probe, microprocessor, pressure, and temperature sensors into one. It adopts a built-in combination to make the structure more compact. It can directly measure the flow rate, pressure and temperature of the fluid, and automatically track compensation and compression factor correction in real time;
The use of dual detection technology can effectively improve the detection signal strength and suppress interference caused by pipeline vibration;
Using intelligent anti-seismic technology, it effectively suppresses interference signals caused by vibration and pressure fluctuations;
It adopts a Chinese character dot matrix display with many display digits and intuitive and convenient readings. It can directly display the volume flow rate under working conditions, the volume flow rate under standard conditions, the total amount, as well as medium pressure, temperature and other parameters;
Adopting EEPROM technology, the parameters are easy to set and can be saved, and historical data for up to one year can be saved;
The converter can output frequency pulses, 4~20mA analog signals, and has an RS485 interface, which can be directly connected to the computer network, and the transmission distance can reach 1.2km;
Multiple physical parameters alarm output, one of which can be selected by the user;
The flow meter head can be rotated 360 degrees, making installation and use simple and convenient;
With the company's FM data collector, remote data transmission can be carried out through the Internet or telephone network
The pressure and temperature signals are input by sensors and are highly interchangeable;
The whole machine has low power consumption and can be powered by internal battery or external power supply.
| model | code | tips | ||||
| BTLUXZ | ……………………………………………… | Precession vortex flowmeter | ||||
| Explosion-proof type | -B……………………………………… | Explosionproof type | ||||
| Transmitter type | A……………………………………B…………………………………… | Round LCD display | ||||
| Square LCD display | ||||||
| Signal output | M…………………………… | pulse | ||||
| L…………………………… | 4～20mA current | |||||
| R…………………………… | RS485 communication interface | |||||
| MR…………… ………… | Equivalent pulse RS485 also has | |||||
| Nominal pressure | -016 ……………… | 1.6MPa | ||||
| -025 ……………… | 2.5MPa | |||||
| -040………………… | 4.0Mpa | |||||
| -063………………… | 6.3Mpa | |||||
| Nominal diameter | -015……………… | 15mm | ||||
| -020……………… | 20mm | |||||
| -025……………… | 25mm | |||||
| -032……………… | 32mm | |||||
| -040……………… | 40mm | |||||
| -050……………… | 50mm | |||||
| -080……………… | 80mm | |||||
| -100……………… | 100mm | |||||
| -150……………… | 150mm | |||||
| -200……………… | 200mm | |||||
| Accuracy | A | Level 1.5 | ||||
| B | Level 1.0 | |||||
Features
Smart design
1. METAL STRUCTURE DESIGN
Core technology is developed and manufactured with stable system performance.
easy to use
2. CASE STRUCTURE DESIGN
The new shell structure design is simple and convenient to operate, and can be used in high temperature environments without adding additional parts.
Flexible and controllable
3. CONICAL MEASURING TUBE
The measurement data is accurate, the measurement range is wider, and the measurement linearity is better.
Various connection methods
4. CONNECTION METHODS
A variety of process connection methods such as flanges, clamps, and threads are available to suit most factory application needs.
Measurement of some materials optional
5. MATERIAL OPTIONAL
Stainless steel, titanium, Hastelloy, PTFE, FEP and other materials.
Combined installation
6. MAGNETIC COUPLING SYSTEM
The flow meter head can be rotated 360 degrees, which is simple and convenient to install and use.
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
