Description

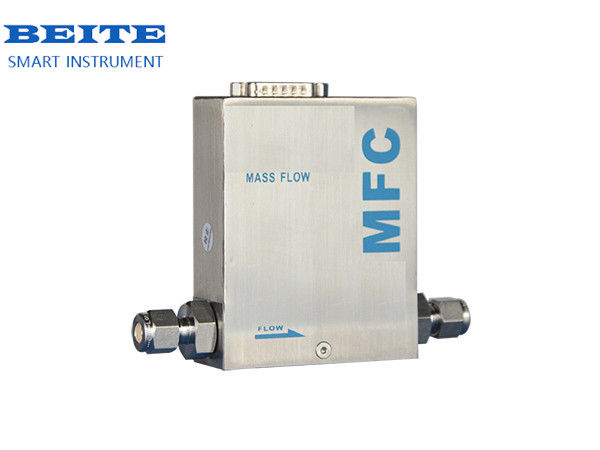

The LF400 series adopts the principle that temperature changes correspond to mass flow, and can measure and control the flow of different gases. It can be applied in the gas flow range from 5SCCM to 30SLM, and will not be affected by changes in temperature and pressure.
The product series is complete, with digital, analog, ordinary, high-precision, and high-pressure types available, with competitive performance and price, and a wide range of applications.
specification
| Function | Flow meter/controller | |
| Basic model | LF400-S | |
| Full-scale flow range (N2) | SCCM | 0～5,10,20,30,50,100,200,500 |
| SLM | 0～1, 2, 3, 5, 10, 15, 20, 30 | |
| Accuracy(%F.S) | ±1(≤15SLM) | |
| ±2(＞15SLM.) | ||
| Control valve action type | Normally closed | |
| Linear(%F.S.) | ±0.5～1(≤15SLM) | |
| ±2％(＞15SLM.) | ||
| Repeatability (%F.S.) | ±0.2 | |
| Response time(sec) | ≤1 | |
| Flow output signal | 0-+5.00V | |
| Flow setting signal | 0-+5.00V | |
| Electrical connectors | DB15 pin | |
| Working temperature | (℃) | 5～45 |
| Working pressure difference | (MPa) | 0.1～0.5 |
| Leak rate | SCCSHe | 1×10-9 |
| Upper limit withstand voltage | 3MPa | |
| Media contact material | 304,316,316L | |
| Sealing material | Fluorine rubber, silicone rubber, nitrile rubber, polytetrafluoroethylene | |
| Connector | VCR " 1/4,1/2 | |
| Swagelok1/8”,1/4” ,3/8” ,1/2”或φ3,φ6,φ8,φ10,φ12mm | ||
| Connectors and dimensions | Φ6mm,1/4"Swagelok:127×28×100mm | |
| 1/4"VCR:127×28×100mm | ||
| Power requirements | +15V,50mA;-15V,200mA | |
| weight | 0.75KG | |
Setting/display/power integrated controller LF-1D
| Output power | +15V±5% 500mA -15V±5% 500mA |
| reference source | +5.00V±0.1% 5mA |
| Power supply | 8VDC-24VDC, 50Hz±5% |
| Input and output signals | Voltage signal 0-5V, current signal 4-20mA |
| Dimensions | 96×96×125mm |
| monitor | 128×64 dot matrix LCD, high brightness and wide temperature (-20~70℃) LCD screen, clear picture LED backlight |
| Upper limit power consumption | 8w |
| control channel | Single channel control display |
| basic error | ±0.2%FS |
| ambient temperature | 0-50℃ |
| environment humidity | 0-85%RH |
| Protection level | IP40 |
Features
Analog thermal mass flow meter/flow controller
/FLOW CONTROLLER
Low unit price, ambient temperature correction, wide range of applicable flow rates:
-0~5, 10, 20, 30, 50, 100, 200,
500SCCM;-0～1, 2, 3, 5, 10, 15, 20, 30SLM-
High precision
/HIGH PRECISION
±1% (≤15SLM), ±2% (>15SLM.)
LF series control module
/LF SERIES CONTROL MODULE
Optional LF series control module has three functions: digital display, power supply, flow setting, etc.
Details Images
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
