Flow Totalizer

DN15-DN100 Mechanical Indicator Steam Metal Tube Rotameter Variable Area Sewage Chlorine Oxygen Nitrogen Gas

Description

In today's era of transition from the Internet to the Internet of Things, industry has also undergone rapid and fundamental changes. Before Industry 4.0, all innovations were aimed at reducing costs through economies of scale and improving productivity. In the future, the secret to industrial success lies in how to improve productivity while shortening the product cycle from "design" to "marketing", and how to meet more complex and personalized product needs? Thereby completing the transformation from "product manufacturing" to "intelligent product manufacturing"; for example: interconnection of production equipment, transparent and visible control processes, flexible and changeable processes, rapid switching of new products, multi-product formula management, product quality traceability, and planned production scheduling. wait.

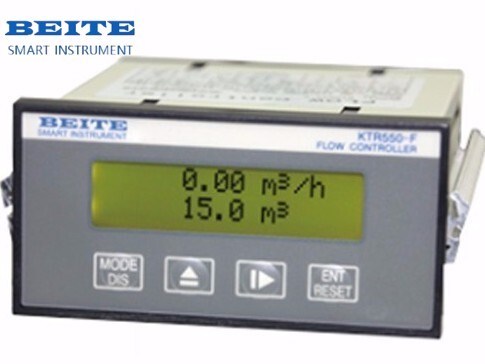

The KTR550-F flow totalizer receives the pulse signal from the flow meter, and can display information such as instantaneous flow, batch setting value, and cumulative total through a 2X16-digit character LCD with backlight. The display effect is clear and intuitive.
Through the combination of rear DIP switch settings, it can be compatible with the input of signals such as voltage pulses, current pulses, OC gates, reed switches, high-resistance coils, low-resistance coils, NAMUR explosion-proof proximity switches, etc., and can be used with most instruments and sensors. , the application range is quite broad. Isolated 4-20mA current signal transmission output.

specification

field:
Used in conjunction with a flow meter with pulse output, it is suitable for applications that require volume accumulation, such as oil depots, terminals, chemical industry, water treatment and other industries.

1. In addition to the millivolt signal input of the selected coil, the instrument has an auxiliary power output (12VDC/100m A) and the power supply has a short-circuit protection function.

2. It is very convenient to set various parameters through the panel buttons. Including instantaneous flow unit, cumulative amount unit, instantaneous flow time unit, etc.

3. The instrument has pulse equivalent output, and the output form is open-collector output (optocoupler isolation output). The pulse width of the pulse equivalent output is adjustable.

4. An external totalizer reset button can be connected, through which the totalizer displayed on the screen can be cleared. The cumulative total cannot be cleared. Only by entering the flow setting menu can the cumulative total be cleared.

5. Complete diagnostic functions make the instrument easier to use and maintain.

6. The instrument has a power-off protection function, no backup power supply is needed, and the data is saved for more than 10 years.

Features

Better-Smart instrument direct supplier
Smart design
/ METAL STRUCTURE DESIGN
Core technology is developed and manufactured with stable system performance.
one
easy to use
/ CASE STRUCTURE DESIGN
The new shell structure design is simple and convenient to operate, and can be used in high temperature environments without adding additional parts. two
Flexible and controllable
/CONICAL MEASURING TUBE
The measurement data is accurate, the measurement range is wider, and the measurement linearity is better. three
Various connection methods
/CONNECTION METHODS
A variety of process connection methods such as flanges, clamps, and threads are available to suit most factory application needs. Four
Measurement of some materials optional
/ MATERIAL OPTIONAL
Stainless steel, titanium, Hastelloy, PTFE, FEP and other materials. five
combined system
/MAGNETIC COUPLING SYSTEM
A batch control system based on a single-chip microcomputer and composed of a variety of instruments
six

Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
