| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |

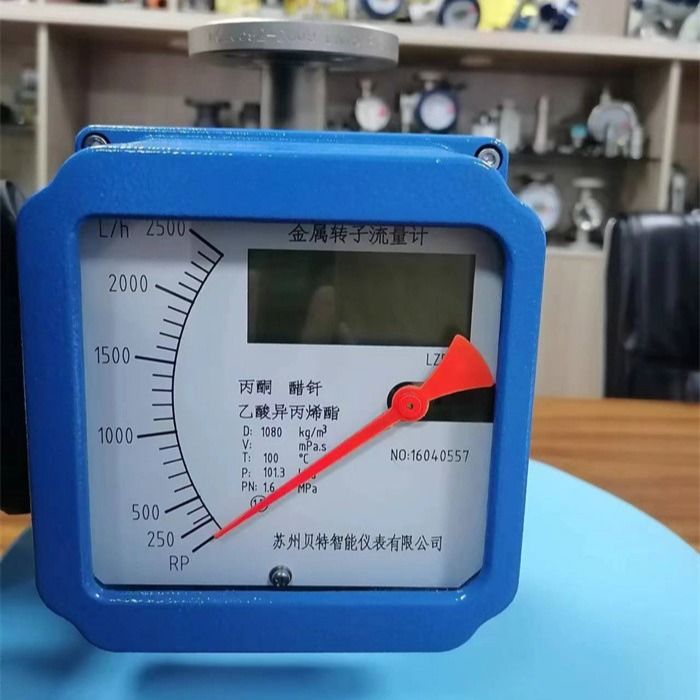

1. Working principle of metal tube rotameter
Metal tube rotor flow meters are generally composed of metal tubes and rotors. When a liquid or gas flows through a metal tube, the rotor turns with the flow of fluid. The rotational angular speed of the rotor is proportional to the flow rate of the fluid. The flow rate and flow rate of the fluid can be calculated by measuring the rotational speed of the rotor.
2. Application areas of metal tube rotameter
Metal tube rotor flowmeters are widely used in flow measurement and control in the fields of petroleum, chemical industry, metallurgy, electric power, pharmaceuticals, light industry, etc. For example, in the petrochemical industry, metal tube rotameters can be used to measure the flow of volatile liquids such as liquefied gas, natural gas, kerosene, gasoline, and engine oil; in the pharmaceutical industry, metal tube rotameters can be used to measure pharmaceutical raw materials and preparations. , injection and other medicines flow.
3. Characteristics of metal tube rotor flowmeter
1. Wide measuring range, suitable for flow measurement of liquids and gases;
2. High precision and small measurement error;
3. Fast response speed, suitable for occasions requiring real-time measurement;
4. Simple structure, easy to install and maintain;
5. Good durability and suitable for harsh industrial environments.
To sum up, the metal tube rotor flowmeter is a flow detection instrument with high precision, strong reliability and wide range of uses. Regardless of the industry, consider using a metal tube rotameter for flow measurement and control.
How to use (installation)
There are 12 steps required to install the sanitary metal tube rotameter.
1. Clean the welding slag and debris in the pipeline before installing the flow meter;
2. The installation inclination of the upright part of the calibration flowmeter perpendicular to the ground shall not exceed 5°. Otherwise, the measurement accuracy will be affected.
3. Position In order to ensure the measurement accuracy of the flow meter, a straight pipe section of no less than 10xDN should be added to the inlet end of the flow meter, and a straight pipe section of no less than 5xDN should be added to the outlet end. The regulating control valve should be installed at the flow meter during measurement. downstream.
4. Model If the measured medium is a large pulsating flow or two-phase flow, a buffer should be installed upstream of the flow meter to reduce or weaken the pulsation to ensure that the flow of the medium is single-phase stable. At the same time, it is recommended to use a damping type flow meter. .
5. Measuring medium When the measuring medium is dirty or contains magnetically conductive particles, it is recommended to install a filter or magnetic filter upstream of the flow meter.
6. The installation of the support flow meter should be able to properly support the vibration of the pipeline or reduce the axial load of the flow meter. Otherwise, the support of the fixed flow meter should be added.
7. Maintenance In order to facilitate the maintenance and repair of the flow meter, the cleaning of the magnetic filter and the regular maintenance of the user's pipelines, it is recommended to use the bypass pipeline as shown in the figure.
8. Stability When the flow meter is used for gas measurement, it should be ensured that the working pressure in the pipeline is not less than 5 times the pressure loss of the flow meter, so that the flow meter can operate stably and normally.
9. Before using the electric remote transmission and the flow meter with alarm limit switch, open the instrument cover and connect the wires correctly according to the wiring diagram.
10. According to the warning plate on the indicator of the meter, take out the damping piece that prevents the float from vibrating during transportation, and then use the meter after restoring it.
11. If the flow meter is turned on, because there is no pressure in the pipeline or the system has not reached the normal working pressure of the instrument, slowly open the control valve until the system is normal before the instrument can be used. Otherwise, it is easy to cause the pointer to jump or the float to suddenly move. A rose damaged by impact.
12. User use: When the user uses it, if the density of the measured fluid is different from that of water, or the parameters and working status of the measured gas are different from the manufacturer's regulations, the flow meter indication reading should be converted. The conversion method is shown in the appendix.
Specification
| Measuring range | Water (20℃) 16～150000 l/h | LCD | Instantaneous flow rate display value range : 0.000～99999 |
| Gas(0.1013MPa 20℃) 0.5～4000 m3/h | Cumulative flow display value range: 0.00～99999999 | ||
| Jacket pressure rating | 1.6MPa | Electrical Interface | M20×1.5,PG11,1/2”NPT Or user provides specifications |
| Medium temperature | Standard type -80℃～+220℃ | overall height | Standard type:250mm(For other installation methods, see the relevant table) |
| High temperature type | 300℃ | Protection level | IP65/IP67 |
| Lined FEP type | ≤85℃ | Explosion-proof signs | Intrinsically safe:ExiaIICT3～6 |
| Explosionproof type:ExdIICT4～6 | |||
| ambient temperature | -40℃～+120℃(C9≤85℃) (Remote transmission type with LCD display≤70℃) | Medium viscosity | DN15: ≤5mPa.s |
| ≤30mPa.s) | |||
| DN25: ≤250mPa.s | |||
| DN50～DN150:≤300mPa.s | |||
|
Range ratio
|
10:1(Special type20:1) | output | Standard signal: two-wire system 4~20mA (can be equipped with HART communication) |
| Standard signal: three-wire system 0～10mA | |||
| Alarm signal: 1. Two relay outputs (limit value 125VAC/0.25A) | |||
| 2. One or two proximity switches (switch requirements are based on customer requirements) | |||
| Pulse signal output: 0-1KHz isolated output (output level Vpp>4.5V) | |||
| Accuracy level | 2.5(Special type1.5%or 1.0%) | powered by | Standard type: 24VDC±20% |
| AC type: 220VAC (85～265VAC) (need to be customized) | |||
| Battery type: 3.7@4.4-5.2AH lithium battery. According to different usage conditions, each group can be used (3 to 12 months), and the two groups can be used interchangeably. | |||
| work pressure | DN15～DN50 PN16MPa (Special type 25MPa) | Connection method | Standard type: HG20592 flange |
| DN80～DN150 PN10MPa (Special type 16MPa) | Special type: user provides flange standard | ||
| Threaded connection type: user specified |
Precautions
Precautions when using the sanitary metal tube rotor flowmeter.
1. Metal rotor flowmeter, metal tube float flowmeter, and Verabar flowmeter with high temperature resistance up to 450°C.
2. Suitable for measuring small diameter and low flow rate gas, liquid and steam flow.
3. High-voltage resistant magnetic coupling principle, no leakage and high pressure resistance.
4. Measure the flow rate. When the flow rate exceeds 100m3/h water flow rate, the pressure loss will be large. .
5. The measuring range is mostly used for process control instruments, with an accuracy of 1%, usually 1.5%, and a range ratio of 10:1.
6. Suitable for occasions, including intrinsically safe explosion-proof and explosion-proof types, suitable for dangerous occasions.
7. Installation method The appropriate installation method is vertical installation with bottom in and top out.
Manufacturer strength
Smart instrument direct supply manufacturer
The company has complete production and processing equipment. The electronics workshop has a modern SMT assembly line and a complete electronic design and development laboratory. The machinery workshop has multiple precision CNC lathes, ordinary lathes, processing, fully automatic circumferential seam welding machines, drilling machines and other equipment. The calibration workshop has two liquid calibration test lines and a small and medium flow gas calibration test line to ensure that each product is tested according to actual conditions. Calibration and verification to ensure product quality.
Standard dimensions and weight
Jacket type overall dimensions and weight
Lined FEP type overall dimensions and weight
Dimensions and weight of top-in and bottom-out type
Side-in and side-out type: overall dimensions, weight and pressure loss
Bottom entry and side exit type: overall dimensions, weight and pressure loss
Horizontal installation type: overall dimensions, weight and pressure loss
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
