Plastic pipe flow meter
Flowmeter structure: It mainly consists of a transparent plastic conical tube installed vertically with the small end downward and the large end upward, and a float that can move up and down in the conical tube, which is composed of nuts, pipes, guide rods, stops, etc.

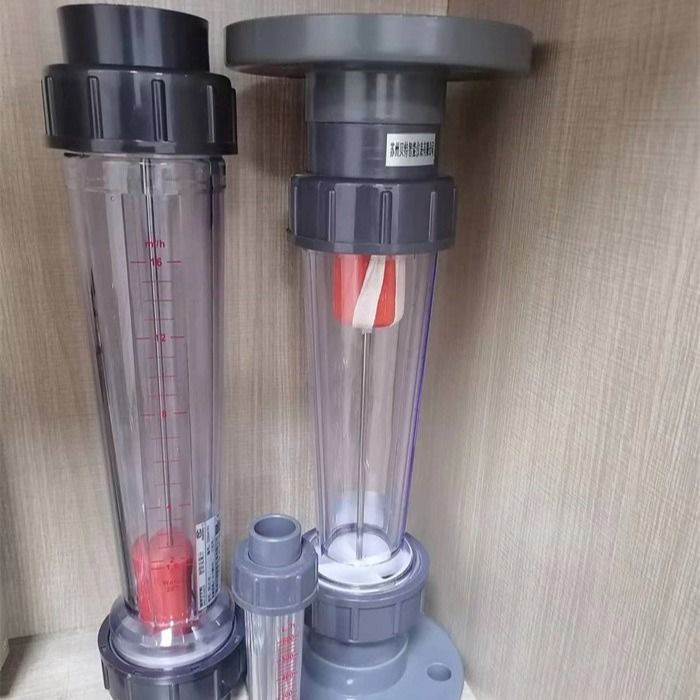

The appearance is as shown in the figure: it is mainly divided into short tube type and long tube type. According to the connection method, it is divided into plug-in pipe connection, threaded connection and flange connection.
The plastic tube float flowmeter has the characteristics of simple structure, light weight, corrosion resistance, not easily broken, non-toxic and odorless, and easy to use. It is mainly used in chemical and light industry, medicine, food, environmental protection and other departments to measure the flow rate of single-phase non-pulsating flow of liquid.
DN15-DN100 Mechanical Indicator Steam Metal Tube Rotameter Variable Area Sewage Chlorine Oxygen Nitrogen Gas
Description
The LZT-S series plastic tube float flowmeter has the characteristics of simple structure, light weight, corrosion resistance, not easily broken, non-toxic and odorless, and easy to use. It is mainly used in chemical industry, light industry, medicine, food, environmental protection and other departments to measure the flow rate of single-phase non-pulsating flow of liquid.
Specification
| serial number | name | Material |
| 1 | pipe | ABS |
| 2 | nut | ABS |
| 3 | "O-ring" | NBR |
| 4 | lower stop | ABS |
| 5 | float | ABS |
| 6 | Conical tube | PS |
| 7 | upper stop | ABS |
| 8 | guide rod | 316 |
| Note: 1. Conventional joints are made of ABS engineering plastic and can also be connected with PVC sinking or ABS internal threads; 2. The guide rod can be lined with F46 304 stainless steel under special circumstances; 3. The "O" ring can also be made of fluorine rubber. |
||
| model | Measuring range | medium | tips |
| LZT-15S (long tube) |
6-60L/h | water | Without guide rod |
| 10-100L/h | |||
| 16-160L/h | |||
| 25-250L/h | |||
| 40-400L/h | |||
| 60-600L/h | |||
| LZT-25S (long tube) |
60-600L/h | ||
| 100-1000L/h | |||
| 160-1600L/h | |||
| 250-2500L/h | |||
| 300-3000L/h | |||
| LZT-40S (long tube) |
0.4-4m3/h | ||
| 0.6-6m3/h | |||
| LZT-50S (long tube) |
0.4-4m3/h | ||
| 0.6-6m3/h | |||
| 1-10m3/h | |||
| 1.6-16m3/h | with guide rod | ||
| LZT-100S LZT-125S LZT-150S |
8-50m3/h | Flange connection with guide rod | |
| 12-60m3/h | |||
| 14-90m3/h | |||
| 18-120m3/h | |||
| 18-150m3/h | |||
| 22-180m3/h | |||
| 25-200m3/h |
| model | measurement range | medium | tips |
| LZT-15S (short tube) |
6-60L/h | water | with guide rod |
| 10-100L/h | |||
| 16-160L/h | |||
| 25-250L/h | |||
| 40-400L/h | |||
| 60-600L/h | |||
| 100-1000L/h | |||
| LZT-25S (short tube) |
100-1000L/h | ||
| 160-1600L/h | |||
| 250-2500L/h | |||
| 300-3000L/h | |||
| LZT-32S (short tube) |
0.4-4m3/h | ||
| 0.6-6m3/h | |||
| LZT-50S (short tube) |
1-10m3/h | ||
| 1.6-16m3/h | |||
| LZT-65S (short tube) |
5-25m3/h | ||
| 8-40m3/h | |||
| 12-60m3/h | |||
| LZT-80S | 5-25m3/h | flange connection with tube | |
| 8-40m3/h | |||
| 12-60m3/h | |||
| Note: 1. The above is regular traffic, special traffic is also available. 2. The accuracy level of the flow meter is level 4, with a pressure resistance of ≤0.6Mpa. The medium used is water or dilute acid or alkali with a concentration of less than 30%. The temperature is generally 0℃~40℃, and it can be used up to 65℃ in a short time. |
|||
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
