Function Description:
1. The instrument has a simple and reliable structure, no moving parts and a long working life.
2. There are no intercepting and blocking parts, and there is no pressure loss or fluid blockage.
3. No mechanical inertia, fast response, good stability, can be used in automatic detection, adjustment and program control systems
4. The measurement accuracy is not affected by the type of medium being measured and its temperature, viscosity, density, pressure and other physical parameters.
5. Different combinations of polytetrafluoroethylene or rubber linings and electrode materials such as Hc, Hb, 316L, and Ti can adapt to the needs of different media.
6 Various flowmeter models are available, including pipeline type and plug-in type.
7 Using EEPROM memory, the measurement and calculation data storage protection is safe and reliable
8 Available in two types: integrated and separate
9 High-definition LCD backlight display
Pulse Output
Two types of pulse output are available to choose from: frequency output mode and pulse output mode. The meter outputs continuous square wave pulse under frequency mode, while pulse series under pulse mode. Frequency output is usually used for flow rate measurement and short period of time totalization. Pulse output can be connected to an external counter directly and is often used for long period of time totalization.
As mentioned hereinbefore, transistor open collector circuit is used for frequency and pulse output. Therefore, the external DC power supply and load are necessary.
Features
1. Measurement is not affected by the variation of flow density, viscosity, temperature, pressure and conductivity. High accuracy measurement is guaranteed according to the linear measurement principle.
2. No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.
3. DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow characteristic.
4. Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption.
5. Implementing 16 bits MCU, providing high integration and accuracy; Full-digital processing, high noise resistance and reliable measurement; Flow measurement range up to 1500:1.
6. High definition LCD display with backlight.
7. RS485 or RS232 interface supports digital communication.
8. Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.
9. SMD component and surface mount technology (SMT) are implemented to improve the reliability.
Main Applications

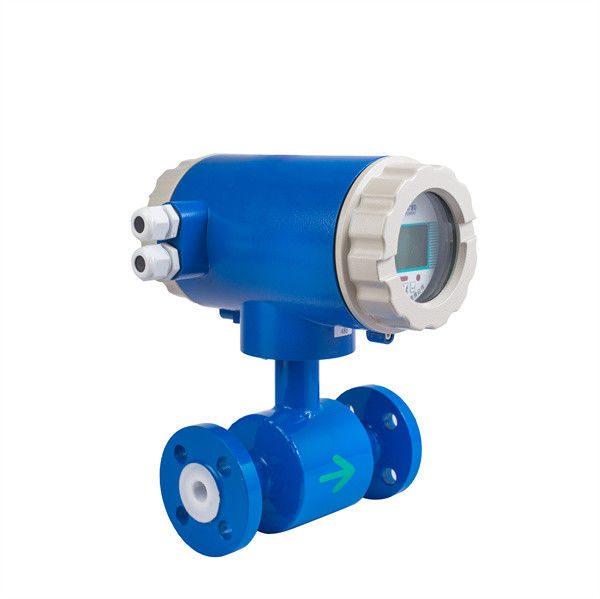

TQMF electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry. 1.3Ambient Conditions Ambient temperature: sensor: -25℃ to + 60℃; converter: -25℃ to + 60℃. Relative humidity: 5% to 90%; 1.4Working Conditions Maximum fluid temperature: Compact type: 60℃ Remote type: Teflon 150℃ Neoprene 80℃; 120℃ Polyurethane 70℃ Fluid conductivity: ≥ 5S/cm
Measuring Principles
The measuring principle of electromagnetic flowmeter is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Converter Circuit Schematic
The converters supplies a stable exciting current to the coil in the sensor of electronetic flowmeters to get B constant and amplifies the electromotive force and convert it into standard signals of current or frequency so that the signals can be used for displaying, controlling and processing. The schematic of converter circuit is shown in Fig. 2.1.
Table of Parameter Setting Menu
The converter setting menu consists of 45 items. Many of them are set up by manufacturer before shipping. It is not necessary to change them when applying. There are only a few of them to be set by user according to the application. The menu items are listed in the table below:
Item No. | Menu Display | Setting Method | Password Level | Value Range |
1 | Language | Option | 1 | Chinese/English |
2 | Sensor Size | Option | 1 | 3 - 3000mm |
3 | Flow Range | Modify | 1 | 0 - 99999 |
4 | Auto Rng Chg | Option | 1 | ON / OFF |
5 | Damping | Option | 1 | 0 - 100 s |
6 | Flow Dir. | Option | 1 | Fwd/ Res |
7 | Flow Zero | Modify | 1 | +/-0.000 |
8 | L.F. Cutoff | Modify | 1 | 0 - 99% |
9 | Cutoff Enble | Option | 1 | ON / OFF |
10 | Rate-Of-Chng | Modify | 1 | 0 - 30% |
11 | Limit Time | Modify | 1 | 0 - 20 s |
12 | Total Unit | Option | 1 | 0.0001L - 1 m3 |
13 | Flow Density | Modify | 1 | 0.0000 - 3.9999 |
14 | Current Type | Option | 1 | 4-20mA/0-10mA |
15 | Pulse Output | Option | 1 | Frq/ Pulse |
16 | Pulse Factor | Option | 1 | 0.001L - 1 m3 |
17 | Freq Max | Modify | 1 | 1 - 5999 Hz |
18 | Comm Address | Modify | 1 | 0 - 99 |
19 | Baudrate | Option | 1 | 600 - 14400 |
20 | EmpPipe Det. | Option | 1 | ON / OFF |
21 | EmpPipe Alm | Modify | 1 | 200.0 KΩ |
22 | Hi ALM Enble | Option | 1 | ON / OFF |
23 | Hi Alm Limit | Modify | 1 | 000.0 - 199.9% |
24 | Lo Alm Enble | Option | 1 | ON / OFF |
25 | Lo Alm Limit | Modify | 1 | 000.0 - 199.9% |
26 | RevMeas.Enbl | Option | 1 | ON/OFF |
27 | Sensor S/N | Modify | 2 | 000000000000-999999999999 |
28 | Sensor Fact. | Modify | 2 | 0.0000 - 3.9999 |
29 | Field Mode | Option | 2 | Mode 1,2,3 |
30 | Multiplying | Modify | 2 | 0.0000 - 3.9999 |
31 | F. Total Set | Modify | 3 | 0000000000 - 9999999999 |
32 | R.Total Set | Modify | 3 | 0000000000 - 9999999999 |
33 | Input Contrl | Option | 3 | Disable/Stop Tot/Reset Tot |
34 | Clr Totalizr | Password | 3 | 00000 - 59999 |
35 | Clr Tot. Key | Modify | 3 | 00000 - 59999 |
36 | Date –y/m/d * | Modify | 3 | 99/12/31 |
37 | Time-h/m/s * | Modify | 3 | 23/59/59 |
38 | Password L1 | Modify | 3 | 0000 - 9999 |
39 | Password L2 | Modify | 3 | 0000 - 9999 |
40 | Password L3 | Modify | 3 | 0000 - 9999 |
41 | Current Zero | Modify | 4 | 0.0000 - 1.9999 |
42 | Current Max | Modify | 4 | 0.0000 - 3.9999 |
43 | Meter Factor | Modify | 4 | 0.0000 - 3.9999 |
44 | Convtr S/N | Modify | 4 | 0000000000-9999999999 |
45 | Sys Reset | Password | 4 |
Scenario application:
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
