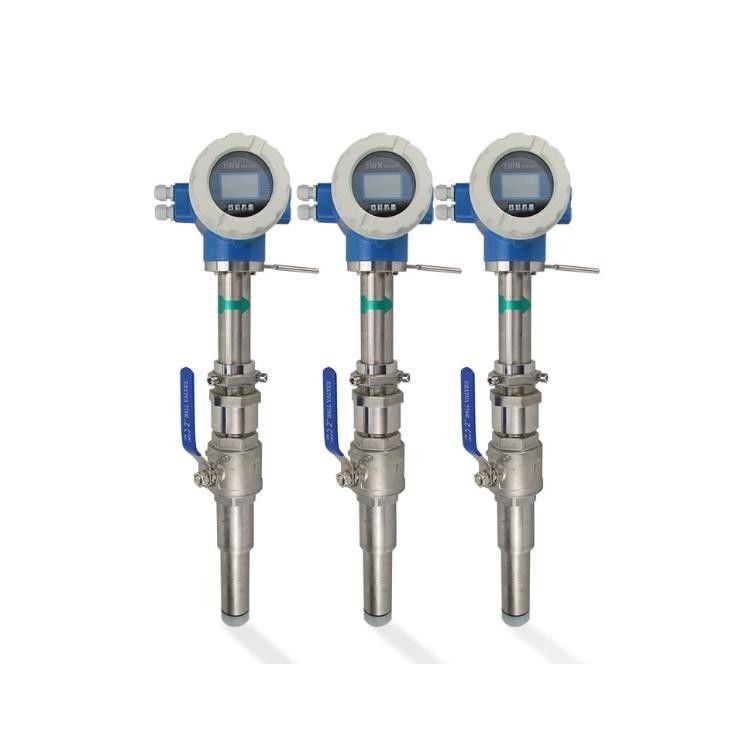

Product overview of plug-in electromagnetic flowmeter:
The insertion type electromagnetic flowmeter is a new type of flow meter developed on the basis of the pipeline type electromagnetic flowmeter. On the basis of retaining the advantages of the pipeline type electromagnetic flowmeter, it is difficult and expensive to install the pipeline type electromagnetic flowmeter on the pipeline. For large defects, according to the principle of NIKURADS, electromagnetic method is used to measure the average flow rate of the fluid, thereby obtaining the volume flow rate of the fluid. Especially with the use of pressurized hole opening and pressurized installation technology, the plug-in electromagnetic flowmeter can be installed without stopping water, and can also be installed on cast iron pipes and cement pipes. The successful development of the insertion electromagnetic flowmeter provides a new method for detecting fluid flow.
Flow Zero
To conduct zero adjustment, the fluid in the sensor pipe must be held still. The flow zero is displayed by flow speed and the unit is m/s. The display of flow zero is shown below:
On the LCD, the top line displays the measured zero point while the bottom line shows the adjustment value. If the FS is not equal to 00.000m/s, adjust the sign and value on bottom line until FS back to nil. Remind again: to adjust the flow zero, the sensor pipe must be filled and the fluid must be kept still. The flow zero adjustment value is an important constant of the meter and should be printed on the calibration sheet and label. The value should include the sign and amount by unit of m/s.
Features
1. Measurement is not affected by the variation of flow density, viscosity, temperature, pressure and conductivity. High accuracy measurement is guaranteed according to the linear measurement principle.
2. No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.
3. DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow characteristic.
4. Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption.
5. Implementing 16 bits MCU, providing high integration and accuracy; Full-digital processing, high noise resistance and reliable measurement; Flow measurement range up to 1500:1.
6. High definition LCD display with backlight.
7. RS485 or RS232 interface supports digital communication.
8. Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.
9. SMD component and surface mount technology (SMT) are implemented to improve the reliability.
Main Applications
TQMF electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry. 1.3Ambient Conditions Ambient temperature: sensor: -25℃ to + 60℃; converter: -25℃ to + 60℃. Relative humidity: 5% to 90%; 1.4Working Conditions Maximum fluid temperature: Compact type: 60℃ Remote type: Teflon 150℃ Neoprene 80℃; 120℃ Polyurethane 70℃ Fluid conductivity: ≥ 5S/cm
Measuring Principles
The measuring principle of electromagnetic flowmeter is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Converter Circuit Schematic
The converters supplies a stable exciting current to the coil in the sensor of electronetic flowmeters to get B constant and amplifies the electromotive force and convert it into standard signals of current or frequency so that the signals can be used for displaying, controlling and processing. The schematic of converter circuit is shown in Fig. 2.1.
Table of Parameter Setting Menu
The converter setting menu consists of 45 items. Many of them are set up by manufacturer before shipping. It is not necessary to change them when applying. There are only a few of them to be set by user according to the application. The menu items are listed in the table below:
Item No. | Menu Display | Setting Method | Password Level | Value Range |
1 | Language | Option | 1 | Chinese/English |
2 | Sensor Size | Option | 1 | 3 - 3000mm |
3 | Flow Range | Modify | 1 | 0 - 99999 |
4 | Auto Rng Chg | Option | 1 | ON / OFF |
5 | Damping | Option | 1 | 0 - 100 s |
6 | Flow Dir. | Option | 1 | Fwd/ Res |
7 | Flow Zero | Modify | 1 | +/-0.000 |
8 | L.F. Cutoff | Modify | 1 | 0 - 99% |
9 | Cutoff Enble | Option | 1 | ON / OFF |
10 | Rate-Of-Chng | Modify | 1 | 0 - 30% |
11 | Limit Time | Modify | 1 | 0 - 20 s |
12 | Total Unit | Option | 1 | 0.0001L - 1 m3 |
13 | Flow Density | Modify | 1 | 0.0000 - 3.9999 |
14 | Current Type | Option | 1 | 4-20mA/0-10mA |
15 | Pulse Output | Option | 1 | Frq/ Pulse |
16 | Pulse Factor | Option | 1 | 0.001L - 1 m3 |
17 | Freq Max | Modify | 1 | 1 - 5999 Hz |
18 | Comm Address | Modify | 1 | 0 - 99 |
19 | Baudrate | Option | 1 | 600 - 14400 |
20 | EmpPipe Det. | Option | 1 | ON / OFF |
21 | EmpPipe Alm | Modify | 1 | 200.0 KΩ |
22 | Hi ALM Enble | Option | 1 | ON / OFF |
23 | Hi Alm Limit | Modify | 1 | 000.0 - 199.9% |
24 | Lo Alm Enble | Option | 1 | ON / OFF |
25 | Lo Alm Limit | Modify | 1 | 000.0 - 199.9% |
26 | RevMeas.Enbl | Option | 1 | ON/OFF |
27 | Sensor S/N | Modify | 2 | 000000000000-999999999999 |
28 | Sensor Fact. | Modify | 2 | 0.0000 - 3.9999 |
29 | Field Mode | Option | 2 | Mode 1,2,3 |
30 | Multiplying | Modify | 2 | 0.0000 - 3.9999 |
31 | F. Total Set | Modify | 3 | 0000000000 - 9999999999 |
32 | R.Total Set | Modify | 3 | 0000000000 - 9999999999 |
33 | Input Contrl | Option | 3 | Disable/Stop Tot/Reset Tot |
34 | Clr Totalizr | Password | 3 | 00000 - 59999 |
35 | Clr Tot. Key | Modify | 3 | 00000 - 59999 |
36 | Date –y/m/d * | Modify | 3 | 99/12/31 |
37 | Time-h/m/s * | Modify | 3 | 23/59/59 |
38 | Password L1 | Modify | 3 | 0000 - 9999 |
39 | Password L2 | Modify | 3 | 0000 - 9999 |
40 | Password L3 | Modify | 3 | 0000 - 9999 |
41 | Current Zero | Modify | 4 | 0.0000 - 1.9999 |
42 | Current Max | Modify | 4 | 0.0000 - 3.9999 |
43 | Meter Factor | Modify | 4 | 0.0000 - 3.9999 |
44 | Convtr S/N | Modify | 4 | 0000000000-9999999999 |
45 | Sys Reset | Password | 4 |
Scenario application:
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
