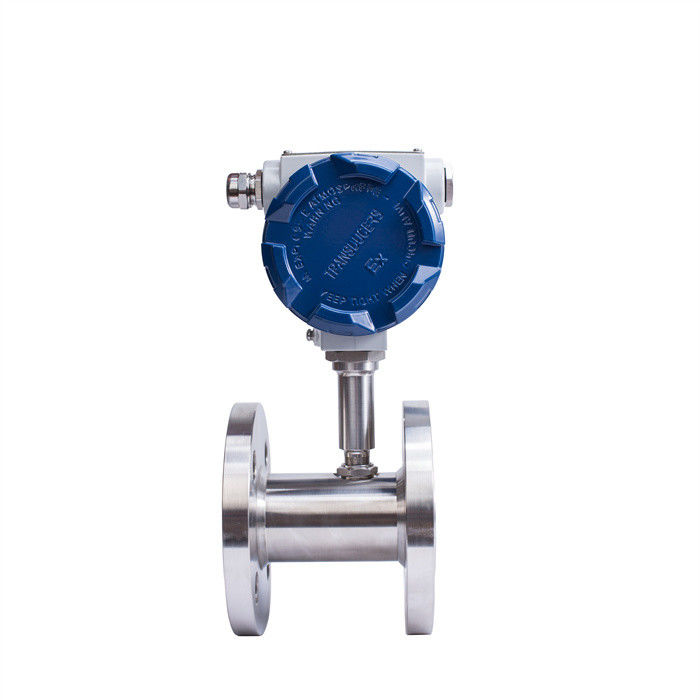

Insertion Turbine Flow Meter Used For Pulse 4~20ma Output RS485 Communication

Technical Parameters

 Basic parameters

Measuring medium: clean liquid, viscosity ≤5mP·S

Accuracy level: 0.2 level, 0.5 level, 1 level

Sensor material: 304 stainless steel, 316 stainless steel, 304+20# carbon steel, aluminum alloy; Impeller: 2Cr13, duplex steel;

Bearings: Made of wear-resistant materials, they are strong and wear-resistant. The unique design ensures that the bearings will not be squeezed by sand and gravel.

Conditions of use: medium temperature: -20℃～130℃; ambient temperature: -20℃～+70℃; relative humidity: 5%～90%

Signal output function: pulse signal, 4~20ma current signal, HART, RS485 communication, suitable for communication with PLC and DCS

Use it with other systems.

The flow converter displays: instantaneous flow, cumulative flow.

Working power supply: External power supply: +24VDC±15% (for pulse, 4~20ma output, RS485 communication)
Internal power supply: 3.0V10Ah lithium battery

Protection level: IP66

Explosion-proof level: ExdIICT6

Features:

Fast flow response speed, accuracy 0.5%

The measurement flow range is wide, generally 1:10

Wide temperature range, -40℃~130℃

Better control for quantitative filling

Bearings use ceramic bearings or PTFE

Provide intrinsically safe explosion-proof certificate

Generally suitable for measuring corrosive chemical liquids, some specifications can be customized with corrosion resistance.


Specification

Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
