| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |
Features
1. High accuracy, generally up to ±1%R, ±0.5%R, high-precision type up to ±0.2%R;
2. It has good repeatability. If it is calibrated frequently or online, it can achieve extremely high accuracy. It is the preferred flow meter in trade settlement;
3. It has three-point correction of the instrument coefficient, intelligently compensates for the non-linearity of the instrument coefficient, and can perform on-site correction;
4. All valid data will not be lost for 10 years after power off;
5. The range is wide, the medium and large diameters can reach 1:20, and the small diameters can reach 1:10;
Description

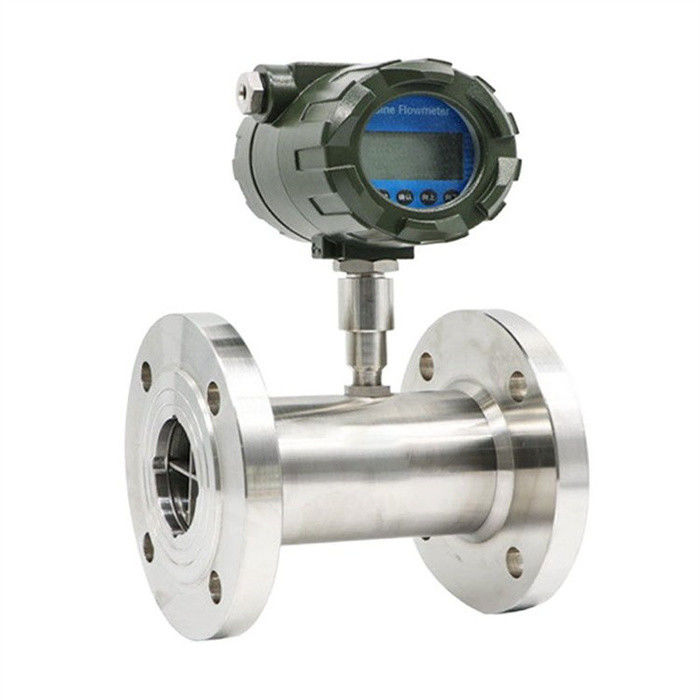

liquid turbine flowmeter is a new generation of turbine flowmeter with the characteristics of simple results, light weight, high precision, good repeatability, sensitive response, easy installation, maintenance and use. Turbine flowmeter is a precision flow measuring instrument that measures the flow and total amount of impurity-free and non-corrosive liquids. Widely used in petroleum, chemical industry, metallurgy, scientific research, food hygiene and other fields.
Intelligent liquid turbine flowmeter is mainly used to measure the flow rate of clean liquid. Energy metering and control for each plant. The flow response speed is fast and the accuracy is 0.5%. As a quantitative fill control, it's excellent. Usually used for measurement of corrosive chemical liquids. Corrosion-resistant models can be customized for some specifications.
Features:
Fast flow response speed, accuracy 0.5%
The measurement flow range is wide, generally 1:10
Wide temperature range, -40℃~130℃
Better control for quantitative filling
Bearings use ceramic bearings or PTFE
Provide intrinsically safe explosion-proof certificate
Generally suitable for measuring corrosive chemical liquids, some specifications can be customized with corrosion resistance.
Specification
| Measuring diameter: | DN4, 6, 10, 15, 25, 40, 50, 80, 100 (diameters above 40 are high-pressure flange connections) |
| Accuracy level: | 0.2, 0.5, 1.0 optional |
| Applicable media: | high pressure liquid |
| Pressure resistance level: | 16, 25, 40Mpa optional |
| Medium temperature: | —20～150℃ |
| Measuring range: | Same as conventional turbine flowmeter |
| output signal: | Pulse, 4-20 mA optional |
| Power supply: | 5-30Vdc |
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
