| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |
Ultrasonic heat meter
Design and functional features
◆Transducer: As the main signal generating component in the ultrasonic heat meter, it adopts imported piezoelectric ceramics, which has stable performance and good consistency, ensuring that the ultrasonic heat meter can achieve high-precision measurement.
◆Temperature sensor: It adopts PT1000 high-precision platinum resistance and is equipped with precision measurement circuit to ensure high-precision temperature measurement.
◆Remote transmission and centralized control function: It has M-BUS and 485 interfaces, which can realize data remote transmission and centralized control
◆Beautiful appearance, can be hung in four directions at will, convenient for reading, and simple to operate.
◆Easy to install, with dustproof, moisture-proof, waterproof, anti-disassembly and anti-vandalism functions.
Principle and composition
Ultrasonic heat and cold meter is used to measure the heat released or absorbed by the heat exchange system. It can be used for heating supply system and air conditioning refrigeration system. The product is mainly composed of paired temperature sensor (to measure the temperature of inlet and return water), flow sensor (to measure the volume of hot water passing through the pipe) and calculation part (to calculate the used heat and cold and display it)
Description

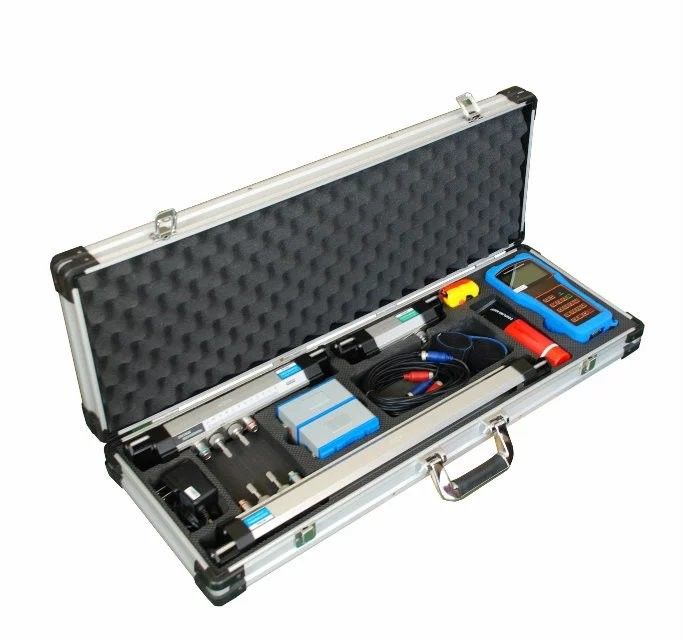

An ultrasonic flowmeter specially designed for small pipe measurement, which solves the problems of ordinary clamp-on flowmeters being unsuitable for installation and unstable measurement on small pipe diameters. It can be installed in complex locations in pipelines, takes up little space, and can measure locations that ordinary flowmeters cannot measure;
Advantage:
It can be installed in complex locations in pipelines, takes up little space, and can measure locations that ordinary flowmeters cannot measure;
The integrated one supports a minimum pipe diameter of DN15 (20) and a maximum pipe diameter of DN80 (90);
Supports stainless steel pipes, carbon steel pipes, copper pipes, plastic pipes and other material pipes;
Application scenarios:
Small diameter liquid measurement in cleaning machines, irrigation, beverage and food feeding, solar panel cleaning, database, etc.
specification
| Product number | X3 split |
| Flow range | 0.1m/s~5.0m/s |
| Accuracy | ±2.0% |
| Repeatability | 0.8% |
| Measure pipe diameter | 9.53 to 90 |
| Storage function | With daily, monthly and annual flow accumulation |
| Analog output | 4~20mA, maximum load 600Q |
| Alarm Output | OCT upper and lower limit alarm function (optional) |
| Communication Interface | RS485, supports Modbus communication protocol |
| power supply | 24VDC |
| cable length | 2.0 meters |
| keyboard | Four touch buttons |
| show | OLED 128*64 dot matrix display |
| unit | Supports metric and imperial unit selection, Cubic Meters (m³), Liters (L), USA Gallons (GAL), You can press /hour (per hour), /min (per minute), the factory default unit is m³/h |
| totalizer | 6-digit flow totalizer |
| Suitable for pipes | Stainless steel, carbon steel, copper pipe, plastic pipe |
| shell material | Aluminum alloy |
| ambient temperature | 0℃~50℃(32°F~122°F) |
| Medium temperature | 0℃~50℃(32°F~122°F); optional high temperature sensor: 0℃~110℃(32F~230°F) |
| environment humidity | Relative humidity 0~95%, no condensation |
| Protection level | IP54 |
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
