Variable Area Metal Tube Float Flowmeter Gas Level Small Flow Pointer DN15-DN100
Description
Oxygen bar flow meter, the measuring tube is made of high-quality transparent organic glass, and can be equipped with a regulating valve. This flow meter is mainly used to detect and control the flow of oxygen. It is currently widely used in supporting oxygen concentrators and ventilator equipment. The size and flow range can be customized according to customer requirements.
LZM- Series Acrylic Flow Meter LZM Series Acrylic Flow Meter
Brief description of oxygen bar flow meter
"The oxygen bar flow meter is a flow meter with organic glass as the main body, used to measure the single-phase non-pulsating flow rate of liquid or gas.
It is characterized by beautiful appearance; light weight; not easily broken; and long service life. "

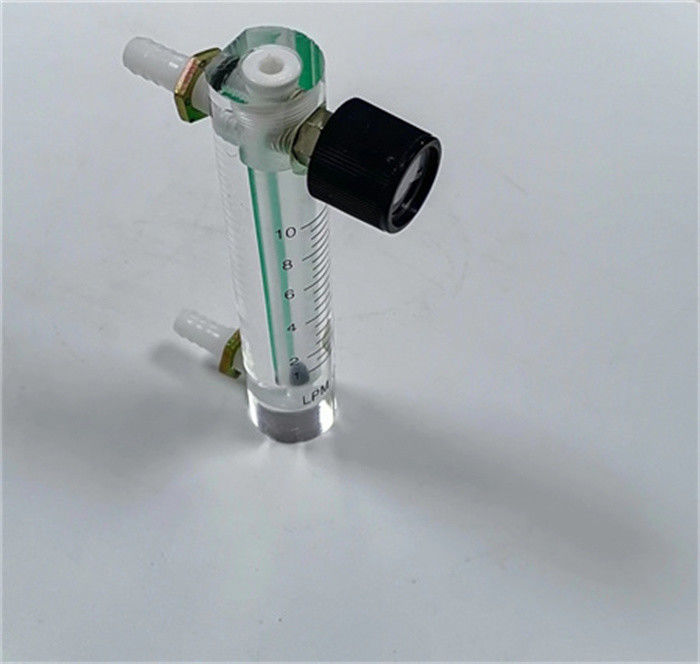

LZM-6T O₂ oxygen bar flow meter. This flow meter is widely used in medical equipment and oxygen concentrators.
Specification
LZM-6T O₂ series flow meter overall dimensions
| model | serial number | Measuring range (L/min) |
Connection method | Accuracy | Size ( m m ) | ||||||||||||
| A | B | C | D | E | F | G | H | ||||||||||
| LZM-6TO₂ | 1 | 1-3 | hose connection | ±5% | 60 | 20 | 21or19 | 40 | M10X1 or 9/16-18 |
8 | 22 | 8 | |||||
| 2 | 1-5 | 70 | 20 | 50 | 7 | 22 | 7 | ||||||||||
| 3 | 0-5 0-9 0-10 |
93 | 20 | 70 | 10 | 22 | 8 | ||||||||||
| 4 | 1-5 0-6 |
96 | 20 | 70 | 13 | 22 | 8 | ||||||||||
| 5 | 0-51-5 0.1-1 2-10 0.5-10 0.5-14 4-25 0-1000cc/min |
106 | 20 | 80 | 13 | 22 | 8 | ||||||||||
| 6 | 1-5 0.5-10 2-10 |
108 | 20 | 70 | 25 | 22 | 8 | ||||||||||
| 7 | 0-5 1-5 2-10 0.5-14 |
115.5 | 20 | 90 | 13 | 22 | 8 | ||||||||||
LZM-6T O₂ series flow meter parts materials and codes
| With or without regulating valve | Regulating valve material | Nozzle material | 0-ring material | ||||||||||||||
| T-regulated reading O-unregulated reading |
1.Brass 2.Stainless steel |
1.Brass 2. Brass chrome plated 3.Stainless steel 4.Plastic |
1.Fluoro rubber 2. EPDM rubber |
||||||||||||||
Connection Diagram
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
