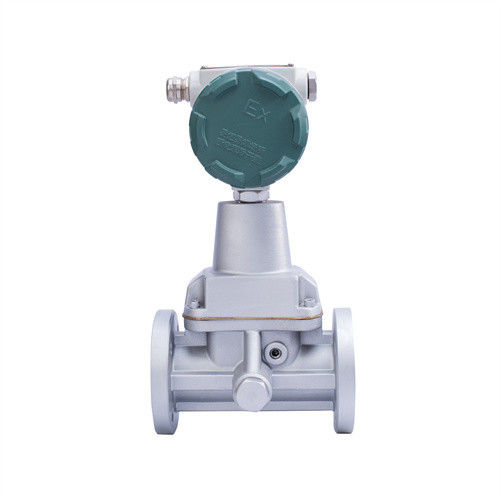

Accurate Gas Flow Measurement Made Easy With Precession Vortex Flowmeter

Overview of vortex flowmeter

The vortex gas mass flowmeter is an instrument used to measure gas flow, mainly based on the principle of vortex generation. Its working principle is as follows:

Basic principle: When a fluid (gas) flows through a specific pipe, vortices will be generated in the pipe due to changes in flow velocity. The frequency of these vortices is proportional to the flow velocity of the fluid.

Measurement method: The vortex gas flowmeter usually uses a small vortex generator (such as a small obstacle) to induce vortices. When the gas flows through this obstacle, vortices will be generated downstream. The sensor inside the flowmeter monitors the frequency of these vortices.

Calculate flow: By measuring the frequency of the vortex, the flowmeter can calculate the flow velocity of the gas, and combined with the density of the gas, the mass flow rate of the gas can be calculated.

Advantages: The vortex gas flowmeter has the advantages of simple structure, no moving parts, high reliability, and low maintenance cost. At the same time, it can maintain good measurement accuracy under high temperature and high pressure conditions.

Application field: This flowmeter is widely used in gas flow measurement in industries such as petroleum, chemical, electric power, and environmental protection.

The vortex gas flowmeter has many advantages, which makes it widely used in gas flow measurement. Here are some of the main advantages:

1. Simple structure
No moving parts: The structure of the vortex flowmeter is relatively simple. Since there are no moving parts, this reduces the possibility of wear and failure, thereby improving the reliability and durability of the instrument.

2. Low maintenance cost
Reduced maintenance requirements: Due to its characteristics of no moving parts, the maintenance frequency of the flowmeter is reduced, thus saving maintenance costs and time.

3. High measurement accuracy
Precise measurement: The vortex flowmeter can provide high-precision measurement over a wide flow range, usually with an error of less than ±1%. Suitable for precise control and monitoring.

4. Wide applicability
Suitable for a variety of gases: It can measure a variety of gases, including natural gas, air, nitrogen, hydrogen, etc., and has good adaptability.

5. High temperature and high pressure resistance
Good environmental adaptability: The vortex gas flowmeter can operate normally in a high temperature and high pressure working environment, suitable for various industrial applications.
6. Good linearity
Good flow characteristics: The relationship between the flow rate and the vortex frequency of the vortex flowmeter is relatively linear, which is convenient for flow calculation and adjustment.
7. Fast response speed
Real-time monitoring: The response speed to flow changes is fast, and the changes in gas flow can be monitored in real time, which is suitable for dynamic working conditions.
8. Not affected by the physical properties of the fluid
Strong adaptability: The vortex flowmeter has strong adaptability to the physical properties of the fluid (such as temperature, pressure, etc.), and can maintain stable measurement performance under different operating conditions.
9. Miniaturized design
Small footprint: Many vortex flowmeters adopt a compact design and occupy less space, which is suitable for use in space-constrained environments.
10. Cost-effectiveness
High cost-effectiveness: In many applications, the vortex flowmeter provides a relatively reasonable price and efficient performance, making it a cost-effective choice.
Due to these advantages, the vortex gas flowmeter has been widely used in many industries, such as petroleum, chemical, pharmaceutical, environmental protection and other fields

Specification

No mechanical moving parts, not easy to corrode, stable and reliable, long life, no special maintenance required for long-term operation;

Using 16-bit computer chip, it has high integration, small size, good performance and strong overall function;

The intelligent flow meter integrates a flow probe, microprocessor, pressure, and temperature sensors into one. It adopts a built-in combination to make the structure more compact. It can directly measure the flow rate, pressure and temperature of the fluid, and automatically track compensation and compression factor correction in real time;

The use of dual detection technology can effectively improve the detection signal strength and suppress interference caused by pipeline vibration;

Using intelligent anti-seismic technology, it effectively suppresses interference signals caused by vibration and pressure fluctuations;

It adopts a Chinese character dot matrix display with many display digits and intuitive and convenient readings. It can directly display the volume flow rate under working conditions, the volume flow rate under standard conditions, the total amount, as well as medium pressure, temperature and other parameters;

Adopting EEPROM technology, the parameters are easy to set and can be saved, and historical data for up to one year can be saved;

The converter can output frequency pulses, 4~20mA analog signals, and has an RS485 interface, which can be directly connected to the computer network, and the transmission distance can reach 1.2km;

Multiple physical parameters alarm output, one of which can be selected by the user;

The flow meter head can be rotated 360 degrees, making installation and use simple and convenient;

With the company's FM data collector, remote data transmission can be carried out through the Internet or telephone network

The pressure and temperature signals are input by sensors and are highly interchangeable;

The whole machine has low power consumption and can be powered by internal battery or external power supply.

Features

Smart design
1. METAL STRUCTURE DESIGN
Core technology is developed and manufactured with stable system performance.
easy to use
2.  CASE STRUCTURE DESIGN
The new shell structure design is simple and convenient to operate, and can be used in high temperature environments without adding additional parts.
Flexible and controllable
3. CONICAL MEASURING TUBE
The measurement data is accurate, the measurement range is wider, and the measurement linearity is better.
Various connection methods
4. CONNECTION METHODS
A variety of process connection methods such as flanges, clamps, and threads are available to suit most factory application needs.
Measurement of some materials optional
5. MATERIAL OPTIONAL
Stainless steel, titanium, Hastelloy, PTFE, FEP and other materials.
Combined installation
6. MAGNETIC COUPLING SYSTEM
The flow meter head can be rotated 360 degrees, which is simple and convenient to install and use.
