Magnetic Flap Liquid Level Meter Liquid Level Measuring Device



 Description

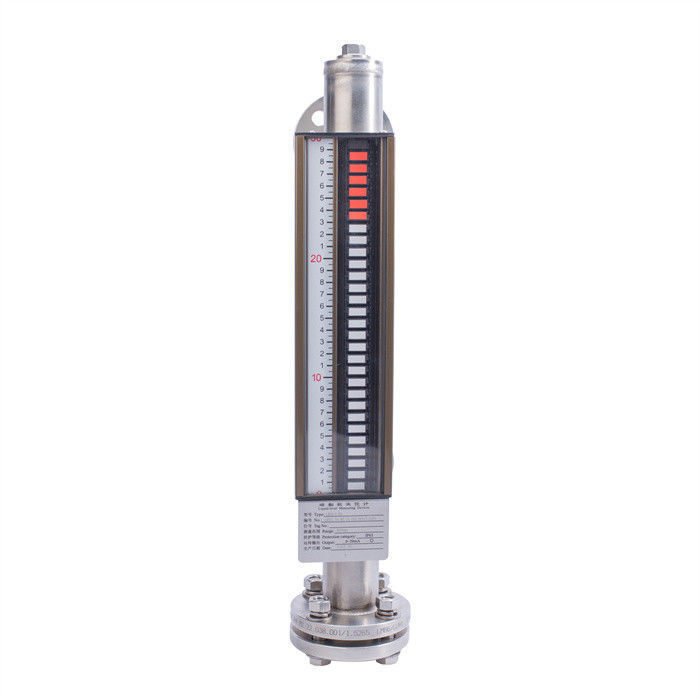

UHZ/C magnetic flip column level gauge (also known as magnetic flip plate level meter, flip plate level meter, float level meter, magnetic level meter, magnetic float level meter) is based on the principle of magnetism. A device specially developed for liquid level measurement based on principles such as Kimide's (buoyancy law) and cleverly combined with the characteristics of mechanical transmission; among them, the side-mounted magnetic flip column liquid level meter is the basic product, and the rest Various products are extensions based on it; while detecting liquid level, we give them more practical functions.

woking principle
UHZ/C series magnetic flip column liquid level meter is based on the principle of buoyancy and magnetic coupling. The magnetic float in the measuring cylinder drives the two-color flip column on the external display of the measuring cylinder to rotate 180°C and display red (reverse) as the liquid level to be measured increases (decreases). Rotate 180°C and display white) to achieve the purpose of measuring and displaying the position of the measured liquid level. The specific explanation is: UHZ/C series magnetic flip column liquid level meter has a cavity that accommodates the float, which we call the main tube or shell. It forms a connector with the container through flanges or other interfaces; in this way, the inside of the cavity The liquid level is at the same height as the liquid level in the container, so the float in the cavity will rise and fall with the rise and fall of the liquid level in the container; we cannot see the liquid level at this time, so we installed a float outside the cavity. A flip column display, because when we made the float, we installed a magnetic steel at the junction of the float sinking into the liquid and the floating part. When it and the float rise and fall with the liquid level, its magnetism is transmitted to the flip column through the shell. Display, push the magnetic flip column to flip 180°; since the magnetic flip column is a cylinder composed of two semi-cylinders, red and white, the color outside the display toward the flip column will change after flipping 180° (red below the liquid level, white above the liquid level) ), the junction of the two colors is the height of the liquid level. Each magnetic flip column has a two-color axially symmetrical structure. The distance between the two magnetic flip columns is 10mm or 20mm. White and red are used to indicate the gas phase part and the liquid phase part respectively. You can also choose the lower part white to indicate the liquid part and the upper part red to indicate the gas. part. The intersection of red and white is the boundary between the liquid phase and the gas phase. This liquid level gauge can also be used for interface measurement between two media with different densities.
UHZ/C series magnetic flip column liquid level meter control type is based on the magnetic flip plate liquid level meter and adds a magnetic switch. While monitoring the liquid level, the magnetic switch signal can be used to control or alarm the liquid level; remotely The transmission type is to add a 4~20mA transmission sensor on the basis of the magnetic flip column liquid level gauge. While monitoring the liquid level on site, the changes in the liquid level are transmitted to the control room through the transmission sensor, cables and instruments to achieve remote control. Monitor and control.

Specification

UHZ/C series magnetic flip column liquid level meter product features
The wetted parts of UHZ/C series magnetic flip column level gauge are made of 321, 316, 316L, 304, 321 lined PTFE (polytetrafluoroethylene), PVC, PP and other materials. The operation is stable and reliable. This product complies with HG/ T2742-95, flange complies with HG/20592-97 standard. Product features are very significant:
1. The design is simple, compact, sturdy and reliable, has a long lifespan, is maintenance-free, and can be installed and used outdoors for many years;
2. The measuring tube is completely isolated from the liquid level display part, liquid level transmitter and alarm switch in terms of pressure and gas resistance;
3. Wide working pressure range, pressure resistance ≤16MPa;
4. Wide operating temperature range, ordinary type ≤350℃,
Remote transmission type ≤80℃, anti-corrosion type ≤120℃
5. Widely used for level measurement of highly corrosive, flammable, explosive, toxic and other liquids;
6. Each model can be equipped with one or several keep-ON/OFF alarm switches to realize automatic alarm of high and low liquid levels;
7. Each model can be equipped with an optional 4-20mA liquid level sensor to achieve remote centralized measurement and control.
UHZ/C series magnetic flip column liquid level meter products are applicable to
UHZ/C series magnetic flip column level gauge can be widely used in various liquid storage tanks, storage tanks, liquid storage pools, reaction tanks, fermentation tanks, etc. in petroleum, chemical, oil fields, medicine, food, wine and other industries. Oil products, liquefied gas, liquid ammonia, strong acid and alkali liquids, power plant boiler drums, deaerators, drain tanks, return water tanks, high and low pressure heaters, condensers, evaporators and other pressure vessels with 321, 304, 321+ lined (F46, F4, PTFE), 316, 316L, PVC, PP compatible liquid medium liquid level, liquid surface and two different media interface measurement and display. There are a variety of installation forms for users to choose from to adapt to the requirements of different occasions and environments. Two types of explosion-proof, intrinsically safe and explosion-proof, can meet the requirements of different use occasions.
UHZ/C series magnetic flip column liquid level meter additional function options
To meet the needs of different occasions and environments, the following options can be added:
1. Each model can be equipped with an optional passive self-maintaining ON/OFF alarm switch to realize automatic control or alarm of high and low liquid levels;
2. Each model can be equipped with an optional 4-20mA liquid level sensor to achieve remote centralized measurement and control.
3. The drain valve at the bottom of the liquid level gauge facilitates draining during use.

​
