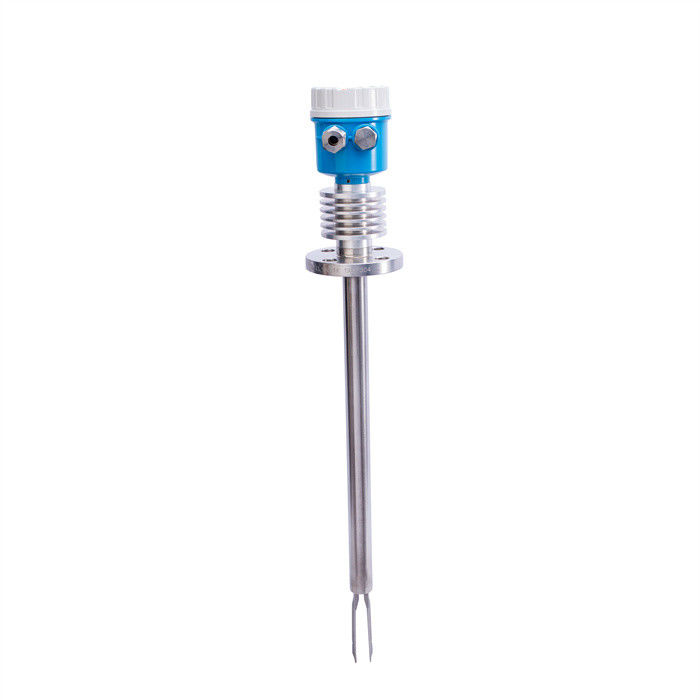

Tuning Fork Level Switch Sensor

Overview and application
BT-11KA series tuning fork level switch is composed of a signaling fork body and an amplifier part. Two groups of piezoelectric crystals are pressed at the root of the fork body, and one group is used as a driver to drive the fork strands to produce vibration; The other set acts as a detector to convert the fork into a voltage signal. When the fork is blocked, the amplitude of the oscillator becomes smaller and the relay outputs the switching signal.
BT-11KB vibrating rod type level switch, using the tuning fork "resonance principle, vibration tube and built-in vibration rod to form 280Hz vibration frequency" tuning fork "resonance probe, driven by piezoelectric elements, vibration. When the probe touches the measured object, the vibration amplitude decreases sharply, which is converted into an electronic signal, making the relay switch action.
Fixed point alarm or control of various bunker levels and liquid levels in various containers
Solid materials: rice, milk powder, sugar, salt, washing powder, dye, cement, stone powder, plastic particles, etc
Liquid media: water, mud, pulp, dyes, oils, milk, alcohol, beverages, etc
Product characteristics
The amplitude is adjustable to measure materials of different states and densities
Can detect sediment in liquid
Anti-corrosion, high sensitivity
No moving part of the instrument, easy to install

Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
