GRD60 Radar Level Meter Fast And Accurate Measurements In Storage Tanks

Description

Radar level meters have many advantages over traditional level measurement methods, mainly including the following aspects:

High accuracy:

Radar level meters use high-frequency radio waves for measurement and can provide very accurate level data, usually with an accuracy of millimeters. This makes it particularly advantageous in industrial applications that require high-precision level control.

Strong adaptability:

Radar level meters can adapt to various complex environments and liquid conditions. Regardless of the nature of the liquid (such as corrosive liquids, viscous liquids), changes in liquid density, temperature changes or pressure changes, radar technology can measure stably and is not affected by these factors.

Good stability:

Radar level meters are not affected by external environmental factors (such as temperature changes, atmospheric pressure changes, vibrations, etc.) and can operate stably for a long time. This makes it particularly suitable for industrial sites such as chemical plants, oil fields, food processing and other harsh environments.

High safety:

Since radar level meters are a non-contact measurement technology, there is no need for direct contact with the liquid during the measurement process. This not only avoids contamination of the liquid, but also reduces the safety risks of operators, especially for the measurement of hazardous chemicals.
Long life and low maintenance cost:

Radar level meters usually have a long life and are not susceptible to mechanical wear or chemical corrosion. Compared with traditional measurement methods, their maintenance cost is low, reducing downtime and maintenance costs.
Versatility:

Modern radar level meters usually have multiple functions, such as automatic calibration, remote monitoring, data logging and alarm functions. These functions make it more practical and reliable in industrial applications with a high degree of automation.
In summary, radar level meters have become one of the preferred technologies for level measurement in many industrial fields with their many advantages such as accuracy, stability, adaptability and safety.
发送反馈
侧边栏
历史记录
已保存

A radar level meter is a device used to measure the precise position of a liquid or solid in a container. It uses radar technology to send and receive radio waves to determine the distance between the liquid or solid surface and the sensor. Here are some key features and working principles of radar level meters:

Working principle: The radar level meter sends high-frequency radio waves (usually microwaves or light waves) to the surface of a liquid or solid, and then receives the signal reflected back from the surface. By measuring the time difference between the sent and received signals, the height of the liquid level or the height of the solid can be calculated.

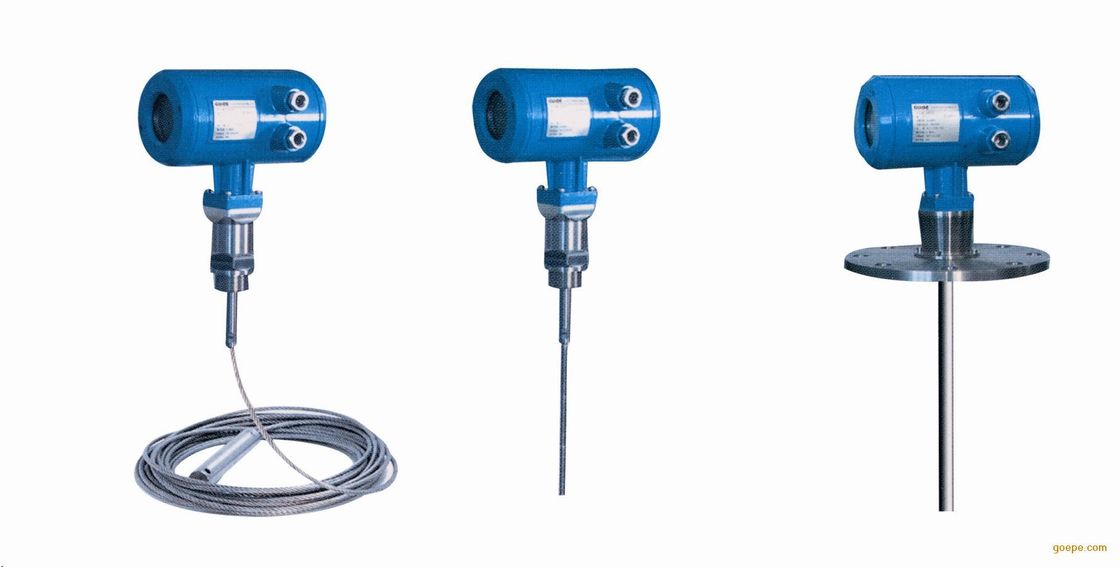

The GRD60 series sensor is a radar-type level measuring instrument with an upper limit of measuring distance of 30 meters. It can be used for level measurement in storage tanks, intermediate buffer tanks or process vessels, and outputs 4~20mA analog signals. Very short microwave pulses of very low energy are transmitted and received via an antenna system. Radar waves travel at the speed of light. The operating time can be converted into a level signal via electronics. A special time extension method ensures stable and accurate measurements over extremely short periods of time. Even if the working conditions are relatively complex and there are false echoes, microprocessing technology and debugging software can be used to accurately analyze the echo of the material level.

working principle

The antenna receives the reflected microwave pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro-pulse on the surface of the material. Correct echo signal identification is completed by pulse software, and the accuracy can reach millimeter level. The distance D from the material surface is proportional to the pulse time T:
D=C×T/2 where C is the speed of light. Since the distance E of the empty tank is known, the level L is: L=E-D
Set by inputting the empty tank height E (= zero point), the full tank height F (= full scale) and some application parameters. The application parameters will automatically adapt the instrument to the measurement environment. Corresponds to 4~20mA output.

Using non-contact measurement

1. Measuring the level of liquid and solid media

2. Can measure all media with dielectric constant >1.8

3. Measuring range 0~20m (can be extended to 35 meters)

4. Using two-wire loop power supply technology, the supply voltage and output signal are transmitted through a two-core cable

5. 4~20mA output or digital signal output

6. Resolution 1mm

7. Not affected by noise, steam, dust, vacuum and other working conditions

8. Not affected by changes in medium density, viscosity and temperature

9. Process pressure can reach 4MPa

10. Process temperature can reach 250℃

Specification

Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
