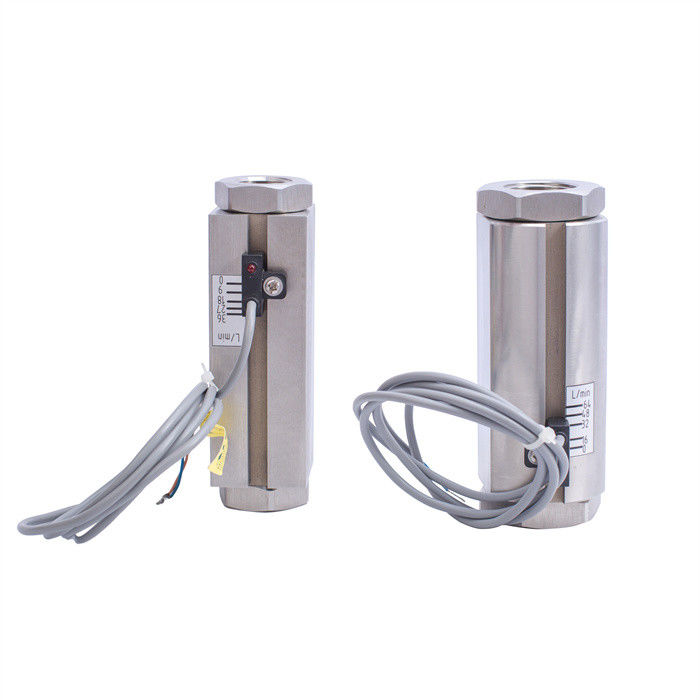

In-Line Shuttle Piston Type Flow Switch Liquid Water SPST 10VA Piston Flow Meter
Description
The FS series flow switch uses a piston-type design to detect excess or insufficient flow of liquid or gas media. It has good repeatability and small pressure loss. The piston magnet energizes a sealed reed switch. The switch action point is adjustable online. The mechanical moving parts are completely isolated from the electrical parts. The switch has an LED indicator that can display the switch action status. The body material can be selected from plastic, brass, stainless steel, etc.
Mechanical parameters:
Working pressure: 0-10MPa
Working temperature: -20 to +120℃
Accuracy: ±5% of set point (with flow scale)
Pipe connection method: internal pipe thread connection
Flow range and overall dimensions:
Note: Both flow rate and mechanical size can be customized
| model | dn | Nominal pressure | Maximum traffic | Alarm point setting rangeL/min | L | A | B | |
| mm | G | MPa | L/min | mm | mm | mm | ||
| FS-08K | 8 | 1/4”internal thread | 10 | 8 | 0-8 | 90 | 25 | 28 |
| FS-10K | 10 | 3/8”internal thread | 10 | 10 | 0-10 | 90 | 25 | 28 |
| FS-15K | 15 | 1/2”internal thread | 10 | 20 | 2000/10/20 | 90 | 25 | 28 |
| FS-20K | 20 | 3/4”internal thread | 10 | 40 | 0-20/40 | 100 | 33 | 33 |
| FS-25K | 25 | 1” internal thread | 10 | 60 | 0-40/60 | 100 | 40 | 40 |
| FS-32K | 32 | 11/4”internal thread | 4 | 100 | 0-60/100 | 140 | 50 | 50 |
| FS-40K | 40 | 11/2”internal thread | 4 | 250 | 0-200/250 | 160 | 70 | 70 |
| FS-50K | 50 | 2” internal thread | 4 | 400 | 0-300/400 | 160 | 80 | 80 |
Flow switch outline drawing:
Electrical indicators and wiring diagram:
Switch type: Reed switch, two-wire
Electrical power: 5-24V/ 200 mA (AC/DC)
250V/120mA(AC/DC)
Electrical wiring: 1.5m polymer wire
Protection level: IP67
Electrical connection diagram: as shown in the figure
Note: The switch must be connected in series with the load!
Applications:
Lubrication system, cooling system, chemical corrosion-resistant pump seal monitoring, semiconductor industry, laser head, welding head, power supply, X-ray tube, semiconductor equipment, water purification and filtration, water heater, industrial chiller. Its superior performance ensures proper lubricant flow to critical bearings or gears to prevent downtime in systems such as printing, rotating equipment, conveyors, processing tools, and robotics. The use of reed switches imported from the United States ensures long-term trouble-free operation of the switch, long service life, safety and reliability. It has successfully replaced similar foreign products and been used in various fields.
