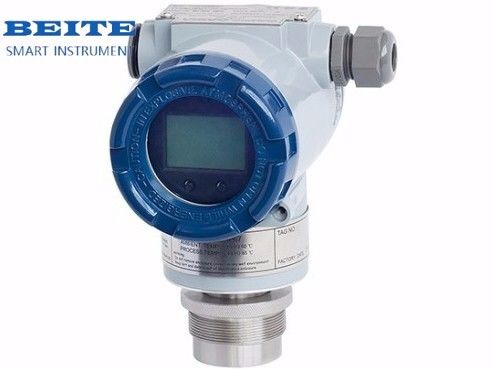

Flameproof Explosion Proof Flow Meter Variable Head Type Flow Meter
Description
When you receive the pressure transmitter, carefully inspect the packaging box for any damage during transportation. If the box is damaged, notify the shipping department and provide a report to the manufacturer or distributor. Unwrap the packaging tape and check whether the ordered parts are complete. Be careful not to discard useful devices and accessories with the packaging materials. Do not return any parts to the factory without first contacting service. The model number and main technical specifications of the instrument are marked on the nameplate of the casing. Please be sure to check whether it matches the specifications when you originally ordered. If you encounter problems with your pressure transmitter, please check whether the installation and operation procedures are correct. Make sure your settings and adjustments are consistent with the manufacturer's recommendations.
The correct position of the transmitter process pipe depends on the medium being measured. In order to select a reasonable installation location, the following points should be considered:
1) Corrosive or overheated media cannot be in direct contact with the transmitter;
2) Prevent slag from depositing inside the pressure tube;
3) Use the pressure tube as short as possible;
4) The hydraulic height in the two pressure pipes should be balanced;
5) The pressure pipe should be installed in a place with small temperature gradient and fluctuation;
When measuring gas pressure, it is required to install a pressure-inducing pipe connected to the process pipeline within 45° of vertical upward or vertical upward direction. The transmitter should be installed above the side pressure port to allow liquid to be discharged into the process pipeline. When measuring liquid pressure, it is required to install a pressure-inducing pipe connected to the process pipeline in the horizontal direction or within 45° downward in the horizontal direction. The transmitter is installed under the pressure port on the side to allow gas to be discharged into the process pipeline.
Specification
|
Range
|
-0.1~0~100MPa(Customizable)
|
|
Output
|
4~20mA, 1-5V, 0-10V, RS485(Customizable)
|
|
Accuracy
|
0.5%FS 0.2%FS
|
|
Power supply
|
24(12-36VDC)
|
|
Working temperature
|
-20~85℃
|
|
Temp Compensation
|
-10~70℃
|
|
Response
|
500HZ
|
|
Level of protection
|
IP65
|
|
Pressure core
|
diffused silicon, strain type, sapphire
|
|
Stability performance
|
±0.1%F.S/year
|
|
Material of the housing
|
304,316L,polytetrafluoroethylene(customizable)
|
|
Process connection
|
default M20*1.5 (customizable)
|
| Number | Range ratio | GP | AP | DP | HP | ||||||
| 3 | 0-02~7.0kPa(0-20~715mmH-O) | ||||||||||
| 4 | 0-0,4~37.4.0kPa(0-38~3810mmH₂O) | ||||||||||
| 5 | 0-1.8~186.8KPa(0-190-19050mmH₂O) | ||||||||||
| 5 7 |
0-6,9~590kPa(0-0.07~/kgf/cm²) 0-20.6~2063kFa(C-0.21-21kgflcm?) |
||||||||||
| 3 | 0-68.9~5890kPa(0-0,7~70kgf/cm²) | 〇 | |||||||||
| 3 | 0-206.8~20630kPa40-2.1~210kgf/cm²) | Q | O | O | |||||||
| 3 | 0-413.7~41370kPa(0-4.22~422kgf/cm²) | 〇 | 〇 | 〇 | |||||||
| Q-yes ○-no | |||||||||||
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
