Convenient Safe Liquid Level Detection Wireless Pressure Transmitters

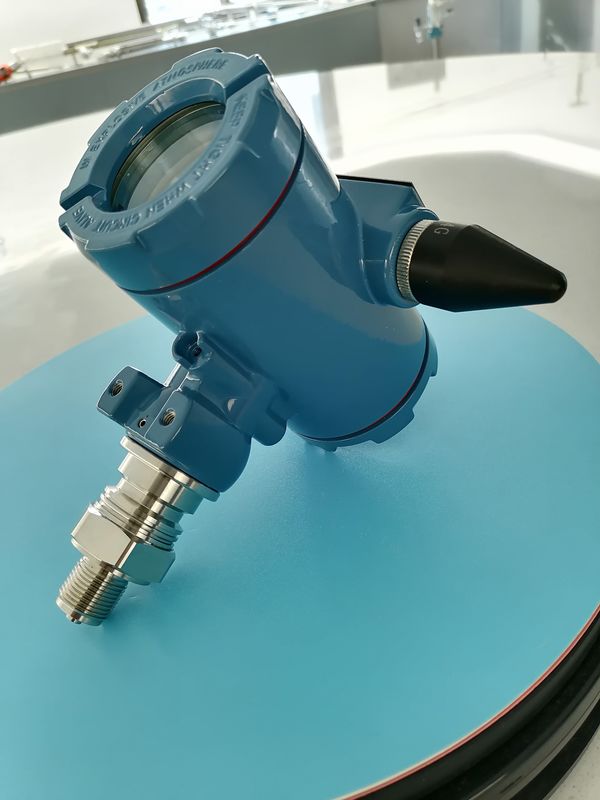

Product image presentation

Overview:
This integrated temperature, pressure, liquid level, temperature and pressure integrated transmitter is a supporting product of the wireless monitoring system for fluid measurement and monitoring. It is suitable for the monitoring of pressure, temperature and liquid level in the production, storage and transportation process of oil and water wells, monitoring of tap water pipe networks, telemetry of water conservancy and hydropower, pressure and temperature detection of gas pipelines, and liquid level detection of rivers, lakes and seas. It adopts micro-power wireless communication mode, does not require external wiring, and is faster, safer and more convenient to install. The standard measurement signal is transmitted through the lorawan network, which can be easily connected to the measurement and control system and has a wide range of applications. It can directly send data to the designated gateway. Long distance, low power consumption, and zero-work are its biggest advantages. Battery-powered, customers do not need to worry about signals and power supply.
I. Product Features:
 Direct installation, can be directly installed at the measurement point, integrated structure;
 Explosion-proof design: explosion-proof aluminum shell, circuit board system is intrinsically safe;
 Protection level IP66, suitable for outdoor use.
 Complies with LoRaWAN standard, wireless communication distance 1~2Km, single gateway coverage is wide, system cost is low, 470-510MHZ is compatible with multiple gateways.
 LCD display, -30~70 degrees clear display, display is not damaged when exceeding the temperature.
 38AH high-energy lithium battery support, battery life 3-5 years (sending interval 1 hour).
 High-gain antenna, integrated antenna and split antenna. Longer distance.
 Automatic power consumption control, high power operation when sending data, micro-power operation when standby. With active data alarm function.
 Support dynamic update software upgrade service.
 Network access method support

The correct position of the transmitter process pipe depends on the medium being measured. In order to select a reasonable installation location, the following points should be considered:
1) Corrosive or overheated media cannot be in direct contact with the transmitter;

2) Prevent slag from depositing inside the pressure tube;

3) Use the pressure tube as short as possible;

4) The hydraulic height in the two pressure pipes should be balanced;

5) The pressure pipe should be installed in a place with small temperature gradient and fluctuation;

When measuring gas pressure, it is required to install a pressure-inducing pipe connected to the process pipeline within 45° of vertical upward or vertical upward direction. The transmitter should be installed above the side pressure port to allow liquid to be discharged into the process pipeline. When measuring liquid pressure, it is required to install a pressure-inducing pipe connected to the process pipeline in the horizontal direction or within 45° downward in the horizontal direction. The transmitter is installed under the pressure port on the side to allow gas to be discharged into the process pipeline.

Specification

The installation process of wireless pressure transmitter is relatively simple and flexible, but in order to ensure its measurement accuracy and communication stability, some installation points need to be paid attention to. The following are the installation steps and precautions for wireless pressure transmitter:

Installation steps

1. **Select the installation location**
- Make sure that the installation location can reflect the actual measured pressure and avoid dead corners or pipe bends.
- Choose a place without interference and avoid strong electromagnetic interference sources, such as frequency converters, radio transmitters, etc.
- Ensure that the signal can be transmitted smoothly to the receiving end. For long-distance transmission, make sure there are not too many obstacles.

2. **Connect the measured medium**
- Use a suitable connector to connect the transmitter to the pressure pipe or pressure interface.
- Make sure that the interface is well sealed to avoid leakage affecting the measurement accuracy.
- Avoid direct exposure to strong vibration or drastic temperature changes during installation.

3. **Power supply and wireless communication configuration**
- Check the battery power or external power supply to ensure that the transmitter has sufficient power supply.
- Configure the wireless communication module and set communication parameters, such as frequency, ID address, data transmission rate, etc. Ensure that the communication configuration matches the receiving end.
- For occasions with explosion-proof requirements, ensure that explosion-proof batteries or power supplies that meet the standards are used.

4. **Signal test**
- After the installation is completed, perform a signal test to confirm that the data can be transmitted to the receiving end normally.
- Test the measurement accuracy of the pressure transmitter and calibrate the transmitter to meet the measurement requirements.

5. **Fix the transmitter**
- Use appropriate fixing brackets or flanges to firmly install the transmitter to avoid looseness.
- If it needs to be installed outdoors, it is best to use a protective cover to protect the device from natural factors such as wind and rain.

Precautions

- **Avoid vibration**: If installed in a place with large vibration, vibration reduction measures should be taken, such as adding vibration reduction pads.
- **Regular maintenance**: Check the battery power of the device and replace or charge the battery regularly.
- **Protective measures**: For harsh environments, ensure that the transmitter has a sufficiently high protection level housing, such as IP65 or higher waterproof and dustproof level.
- **Lightning protection and grounding**: When installing in areas with frequent lightning, consider lightning protection measures and do a good job of grounding.
Installation suggestions for special occasions

- **High or low temperature environment**: Select a transmitter suitable for the temperature range to avoid damage to the equipment due to high or low temperature.
- **Explosive environment**: Use explosion-proof wireless pressure transmitters and ensure compliance with explosion-proof standards and requirements.
- **Marine or corrosive environment**: Select a transmitter made of corrosion-resistant materials to extend the service life of the equipment.

Correct installation can ensure the measurement accuracy and data transmission stability of the wireless pressure transmitter and extend its service life.

Product maintenance
1. All connections of the intelligent transmitter cannot be loosened or disassembled at will.
2. The intelligent pressure transmitter needs to be placed and handled gently to prevent damage to the diaphragm and other accessories. If it is damaged and needs to be repaired, it should be returned to our company. When returning, be sure to protect the diaphragm of the transmitter and do not let it be damaged during transportation. Pack the entire component in anti-vibration materials and ship it back to our company.

Unpacking and product completeness
1. When unpacking, check whether the packaging is intact, and check whether the model, specifications and order contract of the transmitter are consistent according to the packing list. Check whether the random accessories are complete.
2. Differential pressure / pressure transmitter accessories
●1 copy of instruction manual
●1 copy of product certificate
●1 copy of product factory inspection data
●1 set of plug, wiring plug, mounting bracket and U-shaped card (optional)

Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
