| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |
| Model Number | RP62 Series |
Description

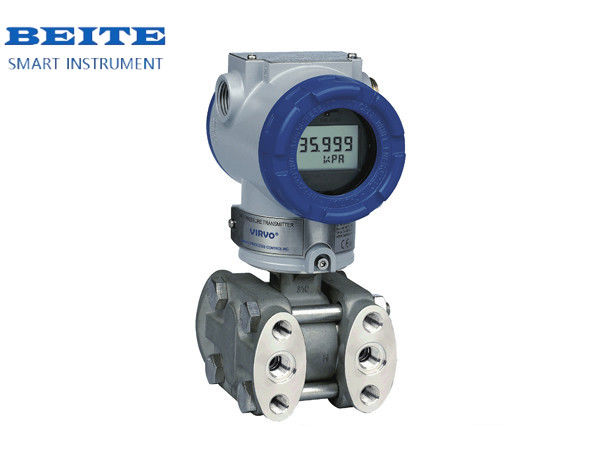

RP62 is equipped with a microprocessor that can measure a variety of pressures, supports multiple outputs and multiple parameter settings, and can implement HART ® communication functions and other operations. According to the usage method, pressure measurement, flow measurement and liquid level measurement can be performed.
Specification
| Process interface materials | Process Isolation Diaphragm: 316L SS, Hastelloy C-276, Monel, Tantalum |
| Process interface: 316SS, carbon steel (galvanized), Hastelloy, Monel | |
| O-ring gasket: Teflon, fluorinated rubber | |
| Exhaust/drain valve: 316L SS, Hastelloy C-276 | |
| Bolt: Carbon Steel, A286 SS (NACE) | |
| Note: There are other special anti-corrosion materials available for the wetted parts, which can be used under various working conditions. Please contact VIRVO ® Company | |
| Mounting brackets | Carbon steel (galvanized) or stainless steel angle brackets, carbon steel flat brackets |
| filling fluid | Silicone oil DC200 or CTFE (fluorine oil) |
| watch case | Epoxy polyester paint, low copper aluminum alloy. Meets NEMA 4X (waterproof) and NEMA 7 (explosion-proof) requirements, available in stainless steel |
| process connection | 1/4NPT, 1/2NPT conversion joint (optional) |
| Wiring | 16AWG (1.5mm diameter) |
| net weight | 4.2kg, about 5kg including accessories |
| Package Size | 234X185X155mm |
| Nameplate | 304 stainless steel |
| Hazardous area certification | With explosion-proof and intrinsically safe certification, it can be used in Class I, Devision 1, Group A, B, C, D situations, and non-flammable Class I. |
| Devision 2, GroupA, B, C, D occasions. ATEX standard EEx ia ⅡCT4, T5, T6 and EExd ⅡCT5, T6 certification |
Electrical indicators
| voltage | 11.9~45 VDC | output signal | 4~20mA DC/HART |
| HART load resistor | 250~1500Ω | Insulation voltage | 500 Vrms (707VDC) |
| Damping time | 0.25S | Start Time | 5S |
Performance
| Accuracy | ±0.075% of span |
| (0.2URL≤Span≤URL) | |
| ±[0.05+0.005x(URL/Span)]% | |
| of Span(0.05URL≤Span<0.2URL) | |
| Stability | ±0.01% full scale/year |
| Temperature effect | ±[0.025%URL+0.125% Span]/28 |
| Vibration effect | The frequency on any axis is 200Hz, and the error caused is ±0.05%/g of the measuring range. |
| Power supply voltage effect | 0.005% full scale/volt |
| CE certification | 89/336/EEC, electromagnetic compatibility (EMC) standard |
Operating environment
| parameter | Rated environment | operating limits | transportation and storage |
| Ambient temperature (℃) | -40~85 | -40~91 | -55~125 |
| Surface temperature (℃) | -40~110 | -40~125 | -55~125 |
| Humidity (%RH) | 10~85 | 0~100 | 0~100 |
| Overvoltage capability | 14MPa, special up to 21MPa | ||
| Vacuum degree (KPa) | 0 | 3.5 | -- |
product structure
Features
/MULTIPLE INPUTS
Differential pressure type (DP), gauge pressure type (GP), absolute pressure (AP)
/MULTIPLE OUTPUTS
4 ~20mA (analog), digital signal output
Ambient temperature automatic compensation function
/AUTOMATIC COMPENSATION
/PARAMETER SETTINGS
Zero/quantity conversion, fault alarm, unit conversion, fine adjustment, etc.
/DIGITAL COMMUNICATION
HART communication various commands 5
/APPEARANCE
CSA,FM,ATEX,GOST6
/FEATURE
High accuracy: ±0.075% of span(±0.04% of span)
Stability: ±0.01%/year
High turndown ratio: 100:1
/FLEXIBILITY
Parameter setting via HART ® protocol commands
Zero point adjustment (Zero point adjustment) 8
/RELIABILITY
Mean time between failures of 20 years; continuous self-detection function (sensor, memory, communication); automatic compensation function (ambient temperature compensation, sensor input linearization); software and hardware fault alarm function; configuration protection: EEPROM write protection function; CE EMC standards (EN50081-2, EN50082-2)
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
