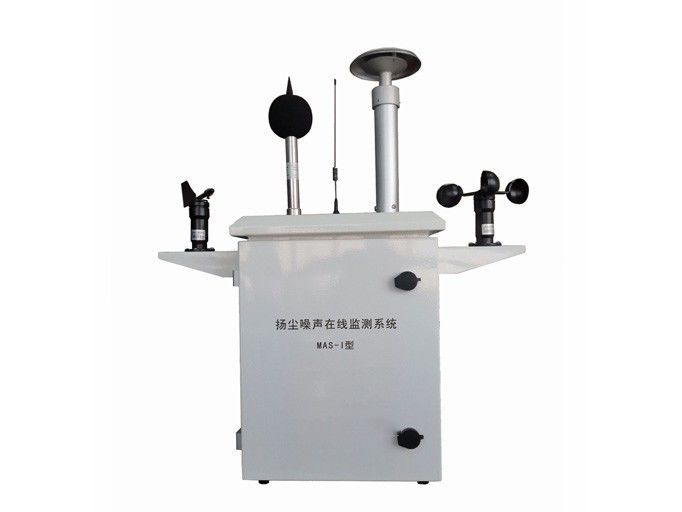

MAS-I Dust Noise Online Monitoring System

MAS-I Micro Air Station

Description

Suzhou Better Intelligent MAS-I Dust Noise Online Monitoring System is a high-precision online air particle monitoring station based on the principle of laser scattering. It has automatic dehumidification and automatic humidity calibration functions. It is suitable for the concentration of inhalable particulate matter and gases in the atmospheric environment. Rapid measurement of environmental parameters such as concentration, temperature, humidity, noise, etc. can be used to detect dust from construction sites, mines, factories, dust workshops, road dust and other environments. Optional cameras can be used

Suzhou Better Intelligent MAS-I Dust Noise Online Monitoring System is a high-precision online air particle monitoring station based on the principle of laser scattering. It has automatic dehumidification and automatic humidity calibration functions. It is suitable for the concentration of inhalable particulate matter and gases in the atmospheric environment. The rapid measurement of environmental parameters such as concentration, temperature, humidity, noise, etc. can realize dust at construction sites, mines, factories, dust workshops, road dust and other environments. Cameras can be selected to send the geographical coordinates of current pollution sources in real time. The video can The on-site conditions of pollution sources are monitored in real time 24 hours a day, and all monitoring data are sent to the cloud platform in real time for big data analysis. It is compatible with environmental particulate matter pollution traceability and alarm systems, and intelligent particulate matter management systems.
The data can be viewed through PC and mobile phones, and reminders, warnings and other information can also be sent through SMS and WeChat. The equipment can be linked with fog cannons, sprinklers and other equipment to quickly improve the current ambient air quality.
The MAS-I dust and noise online monitoring system is a networked continuous automatic monitoring system for ambient air quality. It can integrate monitoring of PM1.0/PM2.5/PM10/TSP, as well as temperature, humidity, wind speed, wind direction, noise, GPS, etc. Multiple indicators. Data can be quickly transmitted to the official monitoring platform through the 4G network as required. The platform can view real-time data and images of all equipment in real time, and can also synchronize data to computers and mobile phones. The equipment can achieve remote online calibration, fault diagnosis, and fault alarms. , remote fault repair, maintenance reminders, online upgrades, and no need for on-site operations, thus greatly reducing the maintenance workload and extending the service life in harsh environments.
The product adopts outdoor waterproof box installation method, works all-weather, and has a rain- and snow-proof structure. Standard outdoor single color display (1040*560*120mm).

Feature


Worry-free operation and maintenance
/ EASY OPERATION AND MAINTENANCE
The equipment can realize remote online calibration, debugging, fault diagnosis, fault alarm, remote fault repair, maintenance reminder, and online upgrade without the need for on-site operations.
Exceeding standard alarm
/ACCURATE MEASUREMENT
If the monitoring index exceeds the standard, an alarm will be output, and the start of equipment such as fog cannons and sprinklers will be controlled. (Alarm value can be set)
Measure accurately
/CONSTANT CURRENT CONTROL
Optical particle size cutting can monitor PM1.0, PM2.5, PM10.0 and TSP simultaneously;
Extended parameters
/LONG LIFE
Can be equipped with temperature and humidity, wind speed and direction, atmospheric pressure, noise, surveillance cameras, and gas parameters.
Constant current control
/BUILT IN PROTECTION
Increased flow feedback realizes constant flow control, maintains the stability of sampling volume and improves accuracy;
Long life
/RELIABLE STRUCTURE
Add sheath gas protection function to extend the service life of the equipment itself;
Built-in protection
/ THE DATA IS ACCURATE
Increase the protection function of the air path;
Reliable structure
/CONTROLLABLE SAMPLING
The structure is designed by the design institute to facilitate installation and use;
Data is accurate
/ACCURATE DATA
Zero calibration and span calibration can be achieved through software;
Sampling is controllable
/DYNAMIC COMPUTING
Customizable sampling method and controllable sampling time
Data is accurate
/DATA TRANSMISSION
Mass concentration conversion coefficient;
Dynamic calculation
/DATA EXPORT
Equipped with a dynamic heating and dehumidification sampling system to avoid the impact of humid environment and weather on data;
data transmission
/NATIONAL STANDARD
It has a 4G module, data can be uploaded directly, and it supports mobile phone, PC, SMS and WeChat information reminder functions.
Data output
/EXTENDED PARAMETERS
Equipped with U port and local export function;
Universal environment
/ENVIRONMENTAL UNIVERSALITY
Rain, snow, and lightning protection (add lightning protector);
Rich protocols
/ RICH AGREEMENTS
RS232/485 etc.
National standard
/ NATIONAL STANDARD
Compatible with HJ/T 212-2005 pollution source online automatic monitoring (monitoring) system data transmission standard;
Related standards
/RELEVANT STANDARDS
JJG846-2015, HJ/T212-2017
Equipment traceability
/EQUIPMENT TRACEABILITY
Traceable to NIST
​
