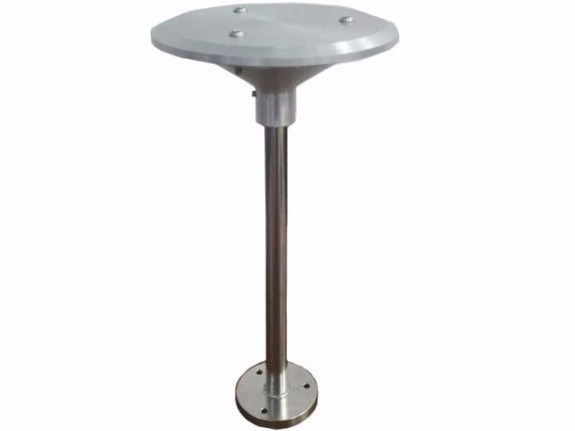

Air Dust Sampling Head

MAS-I Micro Air Station

Description

Suzhou Better Intelligent DM-S dust sampling head is an industrial particulate matter sampling head. It is made of special materials and processes, conforms to aerodynamic principles, will not affect the composition of the sampling medium, and the collected particle source is close to the real value. This product can be used with the construction site dust online monitoring system and complies with my country's environmental protection standards. Choose inner tubes of different diameters to adapt to the different flow rate conditions of the detector you face. In addition, the product is equipped with our company's construction site dust online monitoring system, which can simultaneously realize online real-time monitoring of multiple data such as PM2.5, PM10, TSP, gas parameters, temperature, humidity, noise, wind speed, wind direction, etc. It can also realize solar energy Unsupervised and different communication needs.

Suzhou Better Intelligent DM-Y Dynamic Heating and Dehumidification Sampling System integrates industrial particulate matter sampling. It is made of special materials and processes, conforms to aerodynamic principles, does not affect the composition of the sampling medium, and the collected particle sources are close to real values. This product is suitable for rapid determination of inhalable particulate matter concentration and gas concentration in atmospheric environments, and can achieve the effect of drying the sampled air through internal dynamic heating and dehumidification. It can be used with the construction site dust online monitoring system and complies with my country's environmental protection standards.
This product is designed with stainless steel processing as a whole, with exquisite structure, easy installation, and good waterproof and insect-proof properties. And the design of being installed outside the box saves a lot of space for the internal configuration of the customer's box and air station. You can also choose from a variety of different interface sets (diameter: 6mm, 8mm, 10-16mm) according to your actual needs, fully adapting to the different flow rate conditions of the detector you face.

Feature

 All metal structure design
/ METAL STRUCTURE DESIGN
304 stainless steel, oxidized sandblasted aluminum
Accurate measurement
/ CASE STRUCTURE DESIGN
Dynamic heating and dehumidification to ensure data accuracy
Conical measuring tube
/CONICAL MEASURING TUBE
The specially designed sampling head has a wider measurement range and better measurement linearity.
Connection method
/CONNECTION METHODS
Bottom flange connection, suitable for most factory environment application requirements.
Measurement of some materials optional
/ MATERIAL OPTIONAL
Stainless steel, titanium, Hastelloy, PTFE, FEP and other materials.
protection system
/MAGNETIC COUPLING SYSTEM
Built-in insect net to prevent insects

Specification

1. Material: 304 stainless steel, oxidized sandblasted aluminum

2. Dimensions and height: 280mm

3. Outer diameter: 138mm

4. Scope of application: PM1.0, PM2.5, PM10.0, TSP

5. Use environment: Atmosphere

6. Mass: 0.58kg

7. Fixing method: bottom flange connection

8. Efficacy: Built-in insect-proof net to prevent insects

1. Material: 304 stainless steel, oxidized sandblasted aluminum

2. Dimensions and height: 280mm

3.Outer diameter: 138mm

4. Scope of application: PM1.0, PM2.5, PM10.0, TSP

5.Use environment: Atmosphere

6. Mass: 0.58kg

7. Fixing method: bottom flange connection

8. Efficacy: Built-in insect-proof net to prevent insects

Technical parameters and features:

1. Material: 304 stainless steel, oxidized sandblasted aluminum

2. Dimensions and height: 850mm

3.Outer diameter: 138mm

4. Scope of application: PM1.0, PM2.5, PM10.0, TSP

5.Use environment: Atmosphere

6. Heating power: 50W

7.Power supply voltage: AC 220V

8. Temperature range: 20℃-70℃

9. Control method: PID

10. Automatic temperature control: Yes

11. Temperature control accuracy: ±1℃

12. Over-temperature protection: Yes

13. Mass: 3.0kg

14. Fixing method: bottom flange connection

15. Efficacy: Dynamic heating and dehumidification to ensure data accuracy
​

Description

Note:
1. Fluid: water
2. Working pressure: <0.6MPa
3. Test pressure: 1.0MPax30min
4. Operating temperature: below 120°C
5. Pressure loss: <70kPa
6. Accuracy level: ±5%
7. Mark the direction of water flow at the appropriate location
8. Flange standard: HG20592 PN16 RF

Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
