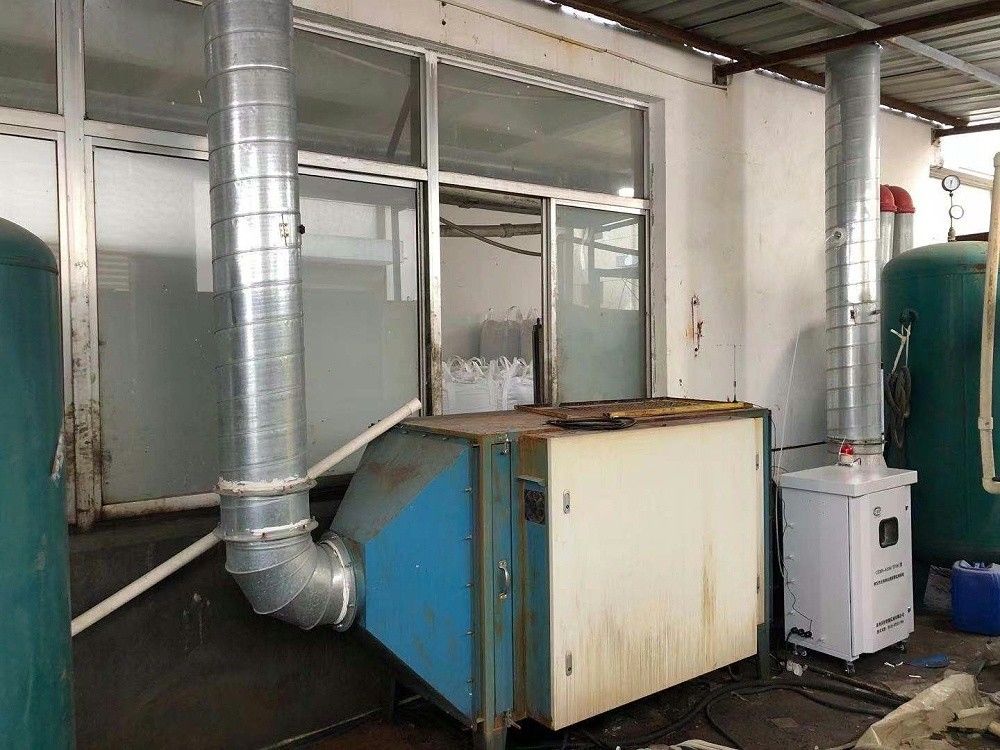

VOC Volatile Organic Compound Monitoring



MAS-I Micro Air Station



Description



V8100/TVOC volatile organic compounds (TVOC) online alarm monitoring system

PID is a photoion detector, mainly used to detect low-concentration volatile organic compounds and other toxic gases in the order of 1ppb-15000ppm. PID is a highly sensitive and widely used detector.

PID detectors use an ultraviolet (UV) light source to ionize organic molecules into positive and negative ions (ionization) that can be detected by the detector. The detector captures the positive and negative charges of the ionized gas and converts them into current signal output to measure the gas concentration. When the gas to be measured absorbs high-energy ultraviolet light, the gas molecules are excited by the ultraviolet light and temporarily lose their electrons and become positively charged ions. After the gas ions are detected on the electrode of the detector, they quickly combine with the electrons to reorganize the original ions. gas molecules. The PID principle is a non-destructive detection principle. It does not require combustion and does not change the gas molecules to be measured. The gas detected by PID can still be collected for further measurement or processing.



In theory, all chemicals can be ionized, but the energy required for their ionization is different. The energy that can transfer an electron and ionize a compound is called ionization energy, and electron volts (eV) are used as the unit of measurement. The energy emitted by a UV lamp can also be measured in electron volts. If the ionization energy of a gas is lower than the energy emitted by the UV lamp, the gas will be ionized. The main gases or volatiles that can be detected by PID are a large number of organic compounds containing carbon atoms (VOC), including

 Aromatics: series of compounds containing benzene rings, such as benzene, toluene, ethylbenzene, xylene, etc.;

 Ketones and aldehydes: compounds containing C=O bonds, such as , butanone, formaldehyde, acetaldehyde, etc.;

 Amines and amino compounds: hydrocarbons containing N, such as diethylamine, etc.;

 Halogenated hydrocarbons: trichlorethylene (TCE), perchlorethylene (PCE), etc.;

 Sulfur-containing organic matter: methyl mercaptan, sulfide, etc.;

 Unsaturated hydrocarbons: butadiene, isobutylene, etc.;

 Saturated hydrocarbons: butane, octane, etc.;

 Alcohols: isopropyl alcohol (IPA), ethanol, etc.

In addition to the above-mentioned organic compounds, PID can also measure some carbon-free inorganic compound gases, such as:

 Ammonia;

 Semiconductor gases: arsine (arsenane), phosphine (phosphine), etc.;

 Hydrogen sulfide;

 Nitrogen oxides;

 Bromine and iodine.





1.3 Technical indicators

Sensor type: PID photoion

Gas type: TVOC

Sampling method: pump suction

System range: 0-2000ppm

Detection range: 0～19.99ppm, 0～99.99ppm, 0～1999ppm

Resolution: 0.01 (0~1.99ppm), 0.1 (0~99.99ppm), 1 (0~1999ppm)

Working method: fixed continuous working

Working power supply: DC24V±10%

Power consumption: <30W

Ambient temperature: -20～60℃

Environmental humidity: ≤95%RH

Measurement error: ≤±10%F.S

Response time: ≤30S (90% stable value)

Repeatability: 2%

Protection level: IP65

Environmental pressure: 80~110KPa

Signal output: 4~20mA DC three-wire system, maximum load resistance 500Ω, RS485 output, switching output

System weight: about 47kg

Overall dimensions: 620(L)*431(W)*958(H)mm

Electrical interface: 3 cable connectors (clamping wire diameter 7-14mm)

Common faults and solutions

Fault phenomenon cause solution

The system cannot start 1. No power supply







2. The power cord is in poor contact. 1. Confirm that there is a 220VAC power supply.

2. Check whether the power cord is firmly connected

No data can be measured after operation or the data deviation is large. 1. The flue gas does not contain the gas to be measured.

2. The sample gas transmission pipeline is leaking. 1. Confirm the components and content of the flue gas.

2. Check the air tightness of the system and tighten the joints of each device

Poor repeatability 1. Pipeline contamination

2. The sensor life has expired. 1. Clean or replace the pipeline.

2. Replace the sensor.

The meter cannot be calibrated. 1. The calibration gas concentration is incorrect.

2. The circuit board is damaged

3. The sensor is damaged 1. Use the correct concentration calibration gas.

2. Replace the circuit board (recommended to return to the factory for repair)

3. Replace the sensor

Relay has no output 1. Circuit board failure

2. The circuit is faulty or disconnected

3. The power supply voltage is too low or too high 1. Replace the circuit board (it is recommended to return it to the factory for repair)

2. Check whether the line is firmly connected

3. Check the power supply voltage (24VDC is recommended)





Precautions

 When opening the cover for calibration or maintenance, make sure to operate in clean air.

 The instrument is used to detect the concentration of organic gases in the air. It cannot detect organic gases in water vapor or inert gases or in severely oxygen-deficient environments.

 When installing the incoming wire, you must tighten the interface cable seat, press the rubber sealing ring, and hold the cable tightly (explosion-proof requirements).

 Take appropriate lightning protection measures. Damage caused by lightning strikes and other irresistible natural disasters will not be covered by the warranty.

 Do not make this system frequently come into contact with high-concentration sample gas, otherwise the working life of the sensor will be lost. It is generally recommended to replace the instrument sensor every two years.

Commonly used spare parts

Serial number Name Item number Remarks

1 Sampling probe filter element 0103000007X 2μm

2 Fine filter element GCX17010200 0.2μm

3 Air pump GDX18060100 6.5L/min

4 flow meter GBX17010800 1-5L/min

5 PID sensor QAX18062000 0-2000ppm
​

Description



Note:
1. Fluid: water
2. Working pressure: <0.6MPa
3. Test pressure: 1.0MPax30min
4. Operating temperature: below 120°C
5. Pressure loss: <70kPa
6. Accuracy level: ±5%
7. Mark the direction of water flow at the appropriate location
8. Flange standard: HG20592 PN16 RF







	DN	A	B	Model specifications	flow(m³/h)
〔00	DN80	400	210	LF-[-80	Q~8Q
〔01	DN80	400	210	LF-(-80	0~8Q
〔02	DN100	400	220	LF-C-100	0~100
	DN100	400	220	LF-〔-100	0~100
	DN125	500	260	LF-〔-125	0~150
〔05	DN125	500	260	LF-C-125	0~150
〔06	DN150	500	270	LF-C-150	0~200
〔07	DN150	500	270	LF-C-150	Q~20Q
〔08	DN200	600	300	LF-〔-200	0~350
〔09	DN200	600	300	LF-[-20	0~35Q



Packing & Delivery


FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
