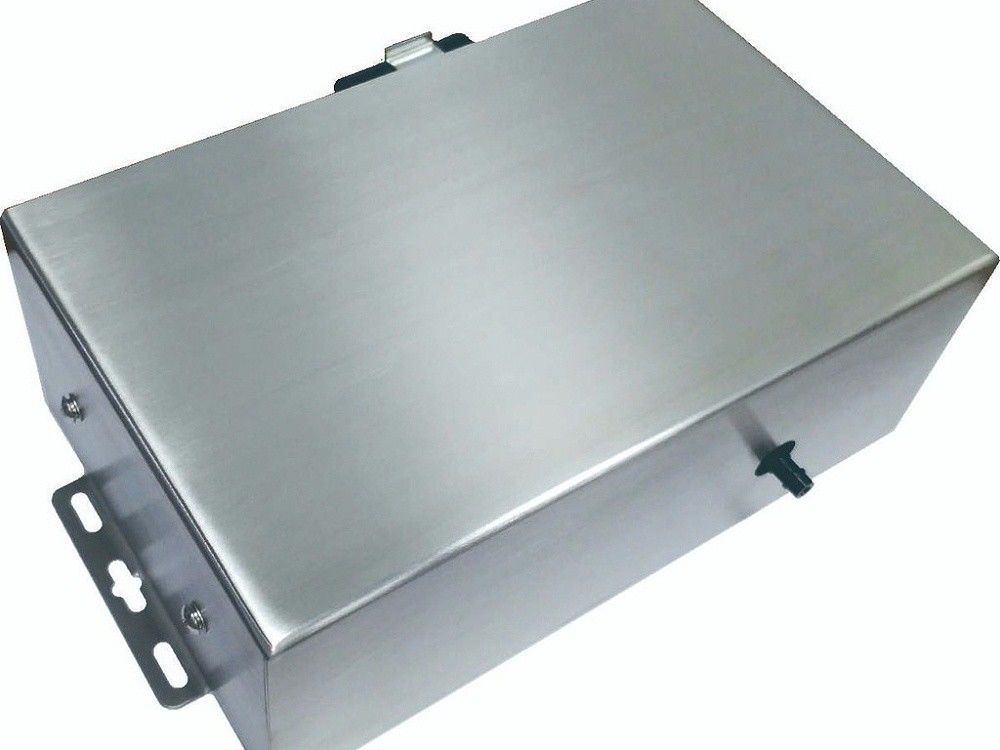

DM-2510T Dust Particle Counter Measurement Meter



MAS-I Micro Air Station



Description



DM-2510T online dust meter is suitable for rapid determination of the concentration of respirable particulate matter in the atmospheric environment, detection of dust concentration in labor hygiene aspects such as production sites of industrial and mining enterprises, and monitoring of respirable dust concentration in the field of environmental protection.



This product adopts a special optical cavity design and introduces sheath gas to protect the entire optical cavity, thereby reducing the contamination of the optical cavity by dust particles to a great extent and reducing the maintenance workload.
The product design complies with the JJG846-2015 standard and has been widely used in real-time monitoring of dust concentration in public places such as construction sites, industrial and mining enterprises, storage yards and docks. It can more quickly and directly observe the continuous changes in atmospheric dust concentration, which is in line with relevant industry standards. Laws, regulations and standards can also effectively improve work efficiency and can be applied both indoors and outdoors.
​



Feature


Accuracy parameters
/PRECISION PARAMETER
Optical particle size cutting, can monitor PM1.0, PM2.5, PM10.0, TSP simultaneously
Long life
/LONG LIFE
Add sheath gas protection function to extend the service life of the equipment itself
Built-in protection
/BUILT-IN PROTECTION
Increase the protection function of the air path
self feedback
/SELF-FEEDBACK
Increased flow feedback realizes constant flow control, maintains the stability of sampling volume, and improves accuracy.
Easy maintenance
/ EASY MAINTENANCE
Easy to install and disassemble
Data is accurate
/ACCURATE DATA
Zero calibration and span calibration can be achieved through software
Sampling is controllable
/ SAMPLING CONTROLLABLE
Customizable sampling method and controllable sampling time
Data is accurate
/ACCURATE DATA
Add mass concentration conversion coefficient
Multiple output
/MULTIPLE OUTPUT
Interface output, RS232/485, etc.​





Specification





Monitoring Parameters	Pm1.0, Pm2.5, Pm10, Tsp
Concentration Range	0-30(Mg/M³)
Monitoring Accuracy	0.1(μG/M³)
The Sampling Period	Sampling 15 Seconds, Interval 45 Seconds
Usage Environment	Atmosphere
Communication Method	Rs232, Rs485
Power Supply	Dc: 12-24v
Power Consumption	4.0w
Dimensions	215×70×160mm3
Quality	1.3kg
Installation Method	Smart Wall Mounting





Function and definition
Sampling port: Please remove the protective cover of the sampling port before using the product.

Exhaust port: Do not close the exhaust port during use.

External filter:

When replacing the external filter, please pay attention to the direction of the arrow and do not allow reverse access to the air path.

Terminal wiring definition:

The wiring terminals (as shown in the picture above) are numbered 1-8 from left to right.

The wiring definition of input and communication is as shown in the following table:



1	2	3	4	5	6	7	8
(+)	(-)	A	B	ground	TXD	RXD	GND
Input terminal (DC: 12V)		RS485			RS232



MODBUS-RTU protocol description
Brief description of the agreement
Byte transmission method

lBaud rate: 9600

l1 starting bits

l8 data bits

lNo parity bit

lError checking (Error Checking) CRC (cyclic redundancy check, low byte first then high byte)

Protocol data frame format



Address	Function	Data	Check
8-Bits	8-Bits	N×8-Bits	CRC-Lo	CRC-Hi



Address field

Only 1-247 is used in the meter, other addresses are reserved. FCH is the broadcast address.

Function domain



code	significance	communication method	effect
03H	Read data register	Character	Get the current value of one or more registers
06H	Set a single register value	Character	Set a value to a register





Error checking methods

The process of generating a CRC is:

l Pre-prepare a 16-bit register bit FFFFH (all 1), called CRC register;

l Perform an XOR operation on the 8-bit bytes in the data frame and the low byte in the CRC register, and store the result in the CRC register;

l Shift the CRC register one bit to the right, fill the bit with 0, and move the lower limit bit out and detect it;

lIf the lower limit is 0: repeat step 3 (next shift);

lIf the lower limit is 1:

XOR the CRC register with a preset fixed value (A001H);

Repeat the third and fourth steps until 8 shifts, so that a complete eight bits are processed;

Repeat steps 2 to 5 to process the next eight bits until all bytes are processed;

The value of the CRC register is the value of the CRC.

There is also a method of calculating CRC using a preset table. Its main feature is fast calculation speed, but the table requires a large storage space. I will not go into details here. Please refer to the relevant information.

Detailed explanation of communication format

Read data (function code 03)

The obtained data is converted into actual values according to the corresponding data item type.

Command example: read PM2.5 data, address 01H, read length is limited, word mode

send:	Instrument address	command code	Starting address code		Read length [word unit]		CRC16
	1	3	0	8	0	2	CRC-Lo	CRC-Hi
Correctly returns:	Instrument address	command code	Byte length		numerical value		check
	1	3	4		xx xx xx xx		CRC-Lo	CRC-Hi

Set a single register (function code 06)

Function code 06H allows the user to change the contents of a single register

Command example: Set the instrument working period to 15 seconds, address 01H

Parameter address list





address	parameter	Read and write properties	Numeric range	type of data
6/40006	TSP (1 decimal place) period data	R	0~999999999	DWord
8/40008	PM2.5 (1 decimal place) period data	R	0~999999999	DWord
10/40010	PM10 (1 decimal place) period data	R	0~999999999	DWord
33/40033	Running status (write "0" to stop)	R/W	0~1	Word
38/40038	Number of measurements	R/W	0~255	Word
39/40039	Intervals	R/W	0~255	Word
40/40040	Delay time	R/W	0~255	Word
41/40041	Sampling cycle time	R/W	1~65535	Word
60/40060	Local address	R/W	1~247	Word





illustrate:

lData type: "Word" refers to a 16-bit unsigned integer;

"DWord" refers to a 32-bit unsigned integer.

l Read and write attributes: "R" is read-only, "R/W" is readable and writable, and it is prohibited to write data to addresses that are not listed or do not have writable attributes;

lThe dust concentration is a 32-bit unsigned integer. The high and low bits each occupy an address, with the low bit in front and the high bit in the back. Multiply the high-digit value by 65536 and add the low-digit value to obtain the parameter value, and then divide by 10 to obtain the actual value of the parameter (unit: μg/m³).

lIn order to simplify the user's operating instructions, you can use the 03H instruction to read the PM parameter address, and the instrument will automatically start, eliminating the need to send instructions to write instrument status, making it convenient for users to operate the equipment.
​

safety regulations
Precautions:
To ensure the reliable use of the equipment and the safety of personnel, please comply with the following matters during installation, use and maintenance:
lWhen installing the equipment, make sure that the ground wire in the power cord is well grounded, and ensure that the input power of the equipment is DC 12V;

lDo not place system equipment in a place that is too cold or too hot;

lThe power supply of the equipment will generate heat when working, so the working environment must be well ventilated to avoid excessive temperature and damage to the machine;

l In rainy and humid weather or when not in use for a long time, the main power switch of the equipment should be turned off;

lNon-technical personnel should not attempt to disassemble the equipment without permission, and do not repair it without permission to avoid accidents or aggravated equipment damage.

other
Safe transportation: It should be stored in a ventilated, dry and harmful gas-free warehouse, and should not be stored together with chemicals, acid and alkali substances, etc.

Safe unpacking: After receiving the goods, please carefully unpack the outer packaging and handle it with care to avoid damage to the equipment inside due to collision.

lAfter unpacking, please check whether the items in the box are complete. Please refer to the packing list.



Maintenance instructions

DM-2510T online dust meter is a carefully designed and manufactured product. A good usage environment is conducive to the maintenance of the instrument and prolongs its service life.

Keep it dry and clean. Excessive humidity and dust will corrode the circuit board and shorten the life of the sensor;

It is prohibited to knock, vibrate or drop this product to avoid damaging the circuit board;

It is forbidden to use rough chemicals, detergents, and decontamination agents to clean the instrument. If there is dirt on the surface, you need to wipe it clean with a lint-free cloth dipped in 75% alcohol while the power is off;

If the instrument does not work properly, untrained personnel are prohibited from opening the host. Please cut off the power immediately and send it to a designated authorized service point or call after-sales service, and untrained personnel will provide you with assistance.

In order to ensure the safety and reliability of the instrument, it is recommended to calibrate it once a year. The user can return the instrument to the production unit for calibration, or follow the method provided by the manufacturer to perform calibration at a measuring station that complies with industry regulations.



After-sales service
DM-2510T online dust meter is an instrument carefully developed by our company for dust detection and monitoring. The company hereby promises that the instrument has a one-year warranty and lifelong maintenance.

Serve attentively and sincerely to you and me. Adhering to the principle of putting customers first and service first, our company will respond and answer customers' requests and questions one by one. Our company always pays attention to the cutting-edge technology in the industry, always considers customer needs and is committed to solving user solutions. While adhering to mature product quality, we timely launch various products and solutions suitable for customers.

Create a new model for the development of future purification products and provide customers with smarter, safer and more secure purification products. I believe that while our people are focusing on the future, they will also be based on the present, continue to track world technology, actively expand the application fields of new technologies, and continuously introduce solutions tailored for users.

If you have any questions, you can contact us at any time.

ØProduct maintenance

ØCalibration of products

ØProduct installation and testing

ØProduct verification and provide verification documents

ØProduct technical support

ØSales of product consumables

ØProduct delivery for inspection (measurement institute)



Schedule

The new air quality standards of the PM2.5 monitoring network, the 24-hour average standard value distribution is as follows:





air quality level	24-hour PM2.5 average standard value
excellent	0~35ug/m3
good	35~75ug/m3
light pollution	75~115ug/m3
Moderately polluted	115~150ug/m3
heavy pollution	150~250ug/m3
serious pollution	Greater than 250ug/m3
